Q-0J03L0005018i

Active

Amphenol Custom Cable

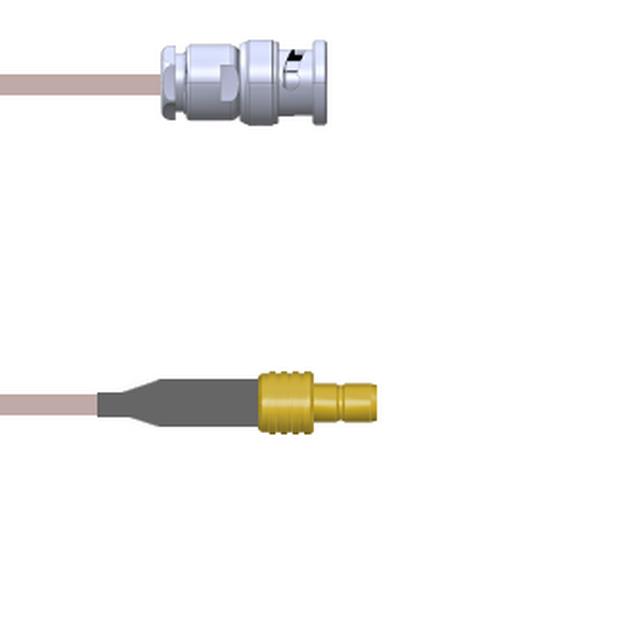

CBL ASSY BNC-SMB PLUG-JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J03L0005018i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J03L0005018i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0J03L0 Series

Part	Features	Color	Cable Type	Overall Impedance	1st Connector Mounting Type	Style	1st Contact Gender	2nd Connector	Length	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-0J03L0005048i	Shielded	Copper	RG-316	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	1200 mm	4 ft	48 in	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L00030.5M	Shielded	Black	RG-174	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	50 cm		19.69 "	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0005006i	Shielded	Copper	RG-316	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	152.4 mm		6 in	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L00032.5M	Shielded	Black	RG-174	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	2.5 m	8.2 '	98.4 in	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0003108i	Shielded	Black	RG-174	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	2.7 m	9 ft	108 in	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0005018i	Shielded	Copper	RG-316	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack				Free Hanging (In-Line)	Female	4 GHz	BNC Plug	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J03L00052.5M	Shielded	Copper	RG-316	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	2.5 m	8.2 '	98.4 in	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0003024i	Shielded	Black	RG-174	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	609.6 mm		24 "	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0003012i	Shielded	Black	RG-174	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	304.8 mm		12 "	Free Hanging (In-Line)	Female	4 GHz	BNC Plug
Amphenol Custom Cable Q-0J03L0005009i	Shielded	Copper	RG-316	50 Ohms	Free Hanging (In-Line)	BNC to SMB	Male	SMB Jack	228.6 mm		9 "	Free Hanging (In-Line)	Female	4 GHz	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.92
		25	$ 74.43
		50	$ 72.95
		100	$ 71.47
		250	$ 69.99

Description

General part information

Q-0J03L0 Series

Cable Assembly Coaxial BNC to SMB RG-316 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
