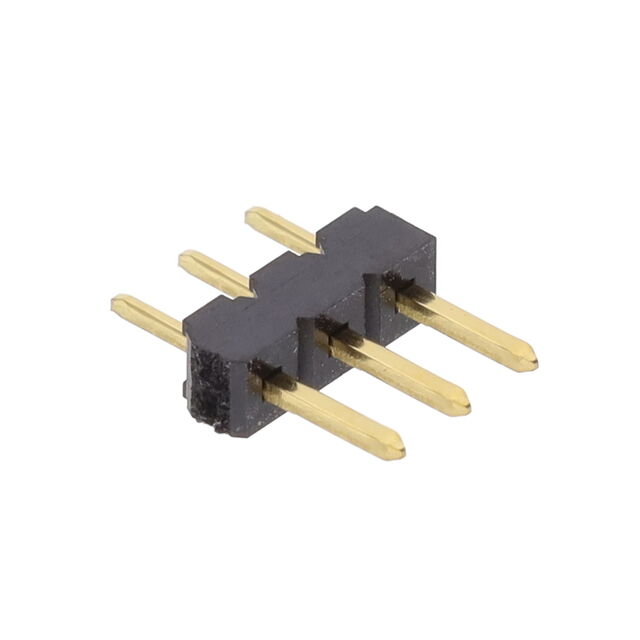

PS-3PF-S4T1-PKL1
ActiveJAE Electronics
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PS-3PF-S4T1-PKL1
ActiveJAE Electronics
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PS-3PF-S4T1-PKL1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.177 in |
| Contact Length - Mating | 4.5 mm |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.07 | |
| 10 | $ 1.80 | |||
| 100 | $ 1.61 | |||
| 500 | $ 1.34 | |||
| 1000 | $ 1.15 | |||
| 5000 | $ 1.02 | |||
| 10000 | $ 1.00 | |||
Description
General part information
PS-3PF-S Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
