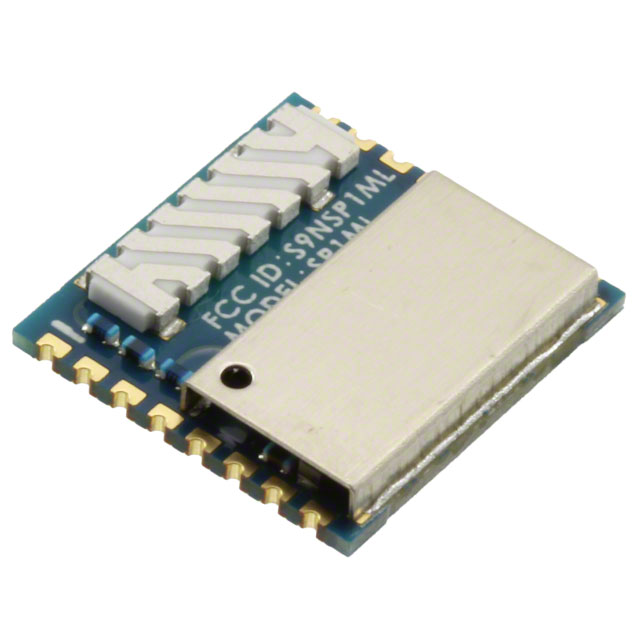

SP1ML-868
ObsoleteSTMicroelectronics
RF TXRX MOD ISM<1GHZ CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
SP1ML-868
ObsoleteSTMicroelectronics
RF TXRX MOD ISM<1GHZ CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP1ML-868 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 13.5 mA |
| Current - Transmitting [Max] | 20 mA |
| Current - Transmitting [Min] | 8 mA |
| Data Rate | 500 kbps |
| Frequency | 868 MHz |
| Memory Size | 128 kB, 16 kB |
| Modulation | ASK, GFSK, GMSK, 2-FSK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power - Output | 11.6 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | UART, SPI |
| Utilized IC / Part | SPIRIT1 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.66 | |
| 10 | $ 20.00 | |||
| 25 | $ 18.33 | |||
| 119 | $ 16.94 | |||
| 238 | $ 16.11 | |||
| 476 | $ 15.00 | |||
Description
General part information
SP1ML Series
General ISM < 1GHz Transceiver Module 868MHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
