10340-55F0-008

Active

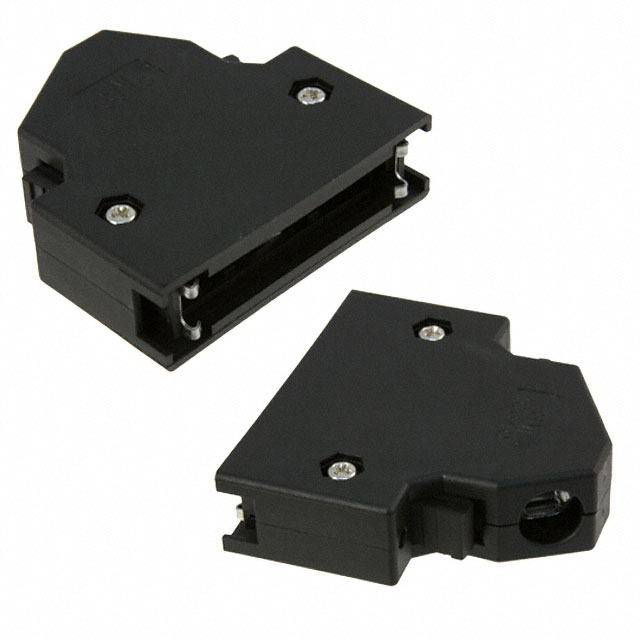

CONNECTOR BACKSHELL, SOLDER PLUG JUNCTION BACKSHELL, 40 POSITION CONNECTOR, 180°

Search across all available documentation for this part.

Active

CONNECTOR BACKSHELL, SOLDER PLUG JUNCTION BACKSHELL, 40 POSITION CONNECTOR, 180°

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10340-55F0-008	10340 Series

	-	-
Accessory Type	-	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	-	60 - 180 °
Cable Type	-	Round, Flat
Color	-	Silver, Beige
Features	-	Latch Lock
Hardware	-	Assembly Hardware, Gasket
Material	-	Zinc Alloy, Metal, Metal, Zinc
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	40	40
Plating	-	Nickel
Primary Material	-	Metal
Shielding	-	Shielded

CONN BACKSHELL 40POS

Part	Cable Exit	Plating	Features	Material	Shielding	Color	Accessory Type	Number of Positions	Primary Material	Cable Type	Material [custom]	Material [custom]	Hardware
3M 10340-3281-000-9
3M 10340-A500-00	60 °	Nickel	Latch Lock	Metal, Zinc Alloy	Shielded	Silver	Two Piece Backshell	40	Metal	Round
3M 10340-C200-00	180 °	Nickel	Latch Lock	Zinc Alloy	Shielded	Silver	Two Piece Backshell	40	Metal	Round
3M 10340-3210-000	180 °	Nickel	Latch Lock		Shielded	Beige	Two Piece Backshell and Cover	40	Metal	Round	Plastic, Steel	Metal
3M 10340-1230-00	180 °	Nickel	Latch Lock	Metal, Zinc	Shielded	Silver	Two Piece Backshell	40	Metal	Flat			Assembly Hardware, Gasket
3M 10340-55F0-008								40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector

Technical documentation and resources
