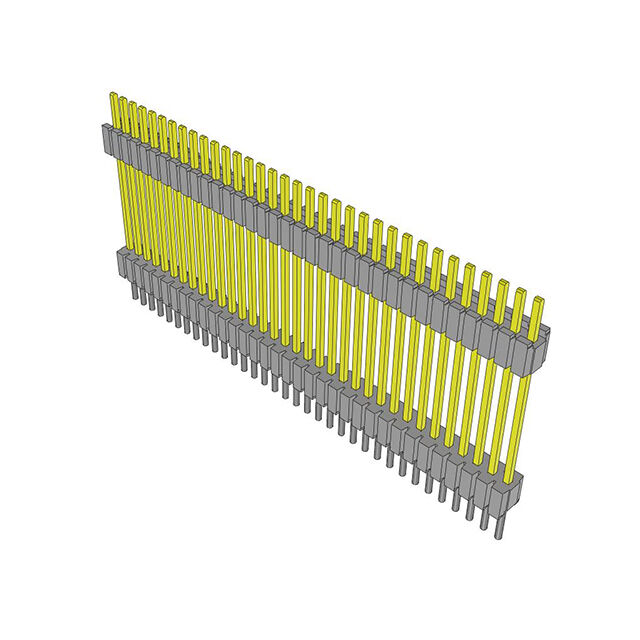

DWM-34-60-S-S-600

Active

Samtec Inc.

CONN HDR 34POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DWM-34-60-S-S-600

Active

Samtec Inc.

CONN HDR 34POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-34-60-S-S-600

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin [x]	20.955 mm
Length - Overall Pin [x]	0.825 in
Length - Post (Mating) [x]	0.105 in
Length - Post (Mating) [x]	2.667 mm
Length - Stack Height [x]	0.6 in
Length - Stack Height [x]	15.24 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	34
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

DWM-34 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Mounting Type	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Length - Overall Pin	Length - Overall Pin	Number of Rows	Color	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DWM-34-01-G-S-220	0.25 Ám	10 Áin	34	Through Hole	Gold	2.794 mm	0.11 in	Solder	0.45 in	11.43 mm	1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm
Samtec Inc. DWM-34-60-S-S-600	0.76 µm	30 µin	34	Through Hole	Gold	2.667 mm	0.105 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.6 in	15.24 mm	20.955 mm	0.825 in
Samtec Inc. DWM-34-60-G-S-250	0.25 Ám	10 Áin	34	Through Hole	Gold	11.557 mm	0.455 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.25 in	6.35 mm	20.955 mm	0.825 in
Samtec Inc. DWM-34-61-S-D-780	0.76 µm	30 µin	68	Through Hole	Gold	3.81 mm	0.15 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			26.67 mm	1.05 in	0.1 in	2.54 mm	0.78 in	19.812 mm
Samtec Inc. DWM-34-59-S-D-570	0.76 µm	30 µin	68	Through Hole	Gold	1.651 mm	0.065 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.57 in	14.478 mm	19.177 mm	0.755 in	0.1 in	2.54 mm
Samtec Inc. DWM-34-59-G-S-390	0.25 Ám	10 Áin	34	Through Hole	Gold	6.223 mm	0.245 in	Solder			1	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			19.177 mm	0.755 in			0.39 in	9.906 mm
Samtec Inc. DWM-34-56-S-D-285	0.76 µm	30 µin	68	Through Hole	Gold	5.588 mm	0.22 in	Solder			2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm			15.875 mm	0.625 in	0.1 in	2.54 mm	0.285 in	7.239 mm
Samtec Inc. DWM-34-01-S-D-330	0.76 µm	30 µin	68	Through Hole	Gold			Solder	0.45 in	11.43 mm	2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.33 in	8.382 mm			0.1 in	2.54 mm
Samtec Inc. DWM-34-01-S-D-300	0.76 µm	30 µin	68	Through Hole	Gold	0.762 mm	0.03 in	Solder	0.45 in	11.43 mm	2	Black	0.12 in	3.048 mm	0.05 in	1.27 mm	0.3 in	7.62 mm			0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	13	$ 9.93

Description

General part information

DWM-34 Series

34 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
