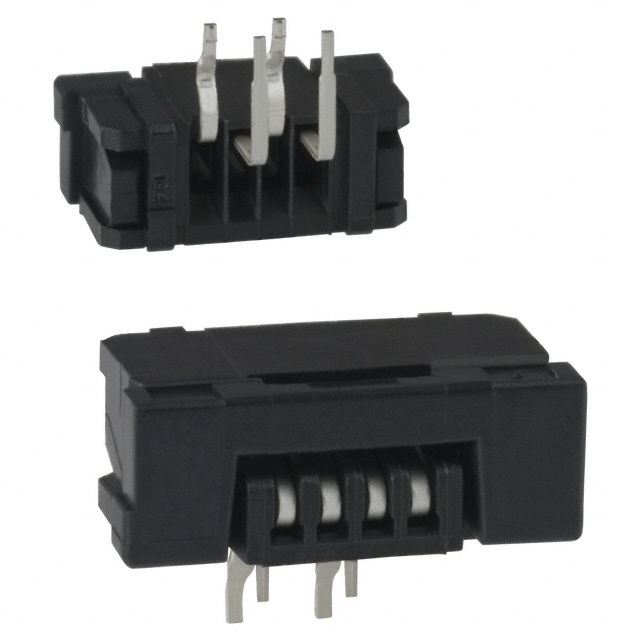

SLW4R-1C7LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 4POS 1MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 4POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SLW4R-1C7LF

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Notched or Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	4 mm
Height Above Board [z]	0.157 "
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Housing Material	Actuator Material	Locking Feature	Connector/Contact Type	Flat Flex Type	Features	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Color	Material Flammability Rating	FFC, FCB Thickness	Cable End Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Mating Cycles	Number of Positions	Contact Material	Pitch [x]	Pitch [x]	Actuator Color
Amphenol ICC (FCI) SLW4R-1C7LF	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Flip Lock	Contacts Bottom	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Tin	Solder	85 °C	-55 °C	100 V	Black	UL94 V-0	0.3 mm	Notched or Tabbed	Through Hole Right Angle	4 mm	0.157 "	20	4	Phosphor Bronze	0.039 in	1 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle
