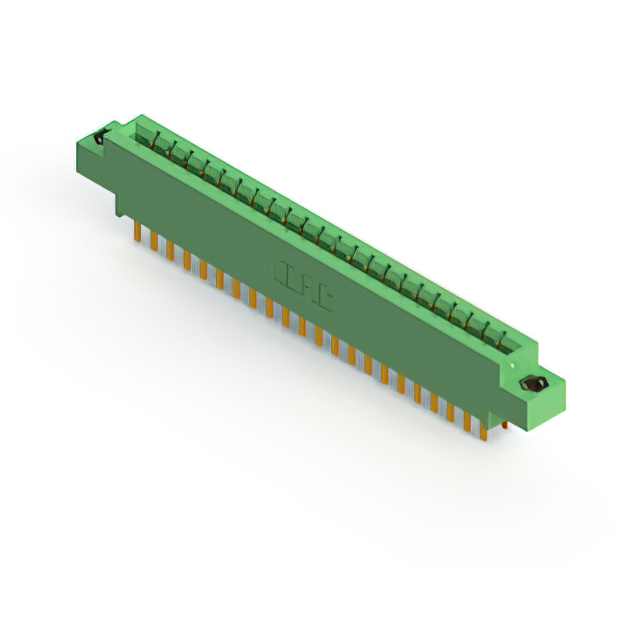

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-044-544-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-044-544-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

333-044 Series

...

Part	Color	Contact Material	Gender	Number of Positions	Number of Positions/Bay/Row [custom]	Features	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Read Out	Termination Rows	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 333-044-556-204	Green	Copper Alloy	Female	44	22	Card Extender	Solder	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-520-208	Green	Copper Alloy	Female	44	22		Solder		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-527-208	Green	Copper Alloy	Female	44	22		Solder		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever
EDAC Inc. 333-044-560-202	Green	Copper Alloy	Female	44	22	Card Extender	Solder	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-559-203	Green	Copper Alloy	Female	44	22		Wire Wrap	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole Right Angle	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-559-803	Green	Copper Alloy	Female	44	22		Wire Wrap	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole Right Angle	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-544-807	Green	Copper Alloy	Female	44	22		Wire Wrap		M3 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-500-208	Green	Copper Alloy	Female	44	22		Solder Eyelet(s)		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Diallyl Phthalate (DAP)	Dual	2	2	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 333-044-560-812	Green	Copper Alloy	Female	44	22	Card Extender	Solder		Side Mount Opening Unthreaded		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Board Edge Straddle Mount	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 333-044-544-804	Green	Copper Alloy	Female	44	22		Wire Wrap	3.96 mm	Top Mount Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	-40 °C	105 ░C	Polyester Thermoplastic	Dual	2	2	Through Hole	0.156 in	3.96 mm	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám
