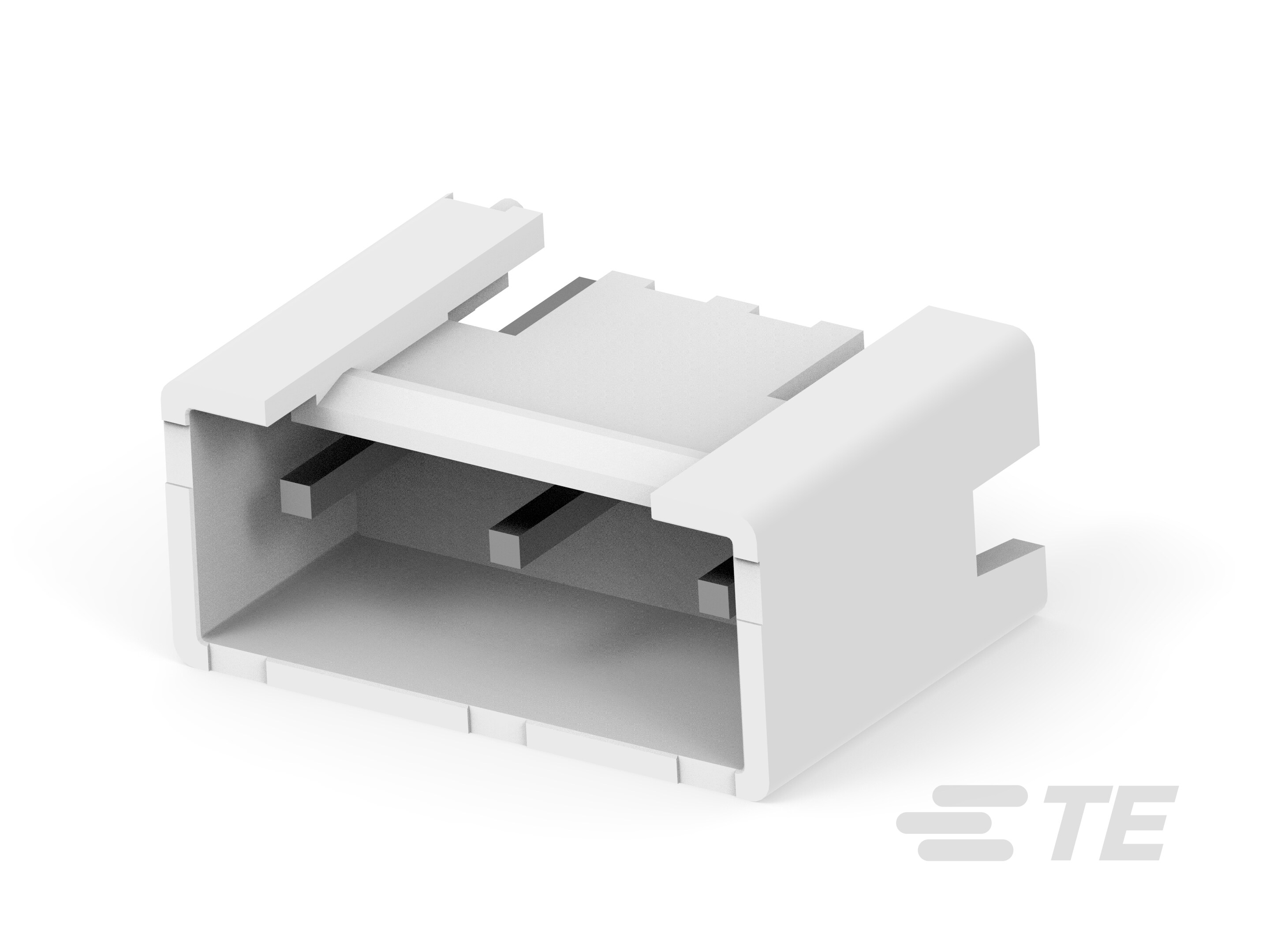

EP3.96 POTTED HEADER, BOSS,3P SELECTIVE
1-2375553-3
ActiveTE Connectivity AMP Connectors
EP3.96 POTTED HEADER, BOSS,3P SELECTIVE
Description
General part information
2375553 Series
Housing Assembly, Housing for Male Terminals, Wire-to-Board, 2 Position, 3.96 mm [.156 in] Centerline, Crimp, 1 Row, Natural, Economy Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2375553-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7 Ąin |
| Contact Finish Thickness - Post | 78.7 µin |
| Contact Length - Mating | 0.242 in |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 12.3 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.622 in |
| Insulation Material | Resin |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.156 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 600 V |
