Specification	SF1112-6034

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	SMP Plug
Fastening Type	Threaded, Snap-On
Features	Limited Detent
Frequency - Max	18 GHz
Impedance	50 Ohm
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Style	Straight

SMP Series

Part	Dielectric Material	Body Material	Center Contact Plating	Mating Cycles	Number of Ports	Center Contact Material	Mounting Feature	Connector Style	Contact Termination	Fastening Type	Features	Housing Color	Frequency - Max	Connector Type	Cable Group Diameter (Default)	Cable Group	Mounting Type	Impedance	Shield Termination	Conversion Type	Adapter Series	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Style	Center Gender	Convert From (Adapter End)	Adapter Type	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Cable Group Size	Convert To (Adapter End) Precision	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Size	Adapter Series Size
McGill Microwave Systems SF1211-6024	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	500 cycles	1	Beryllium Copper	Flange	SMP	Solder	Snap-On	Limited Detent	Silver	40 Gbps	Male Pin Plug	0.085 in	RG-405	Panel Mount	50 Ohm	Solder
McGill Microwave Systems SMP-FS2A-696	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	100 cycles		Beryllium Copper				Snap-On			26.5 GHz				Free Hanging (In-Line)	50 Ohm		Same Series	SMP to SMP	Female Socket	SMP Plug	Straight	Female	Female Socket SMP Plug	Plug to Plug	-65 °C	165 °C	Gold
McGill Microwave Systems SMP-MSSB-PCT-1	Liquid Crystal Polymer (LCP)	Brass	Gold	1000 cycles	1	Brass		SMP	Solder	Snap-On	Smooth Bore	Gold	18 GHz	Male Pin Receptacle			Surface Mount	50 Ohm	Solder									-65 °C	165 °C	Gold
McGill Microwave Systems SMP-FR-C06-2					1	Beryllium Copper		SMP	Solder	Snap-On		Gold	26.5 GHz	Female Socket Plug		Semi Rigid	Free Hanging (In-Line) Right Angle	50 Ohm	Solder												0.047 "

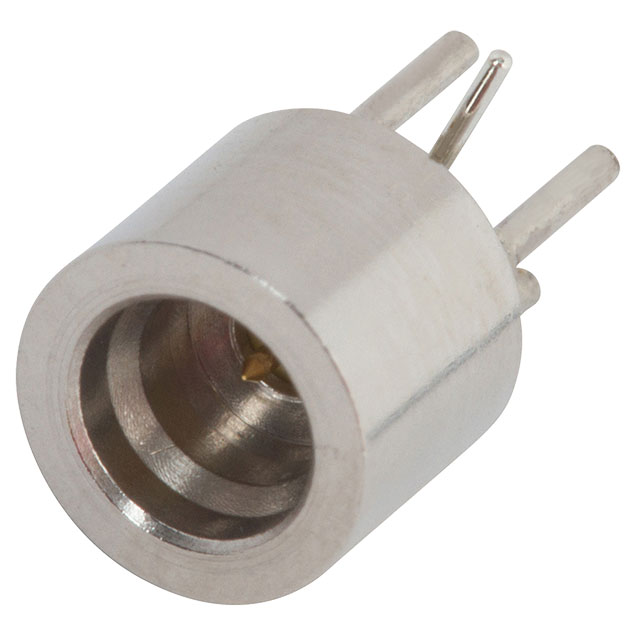

McGill Microwave Systems SF1211-66199-TD	Polyamide-Imide (PAI)	Stainless Steel	Gold	100 cycles	1	Beryllium Copper		SMP	Solder	Snap-On	Full Detent	Silver	20 Gbps	Male Pin Plug			Through Hole	50 Ohm	Solder
McGill Microwave Systems SF1112-6034			Gold				Bulkhead			Snap-On Threaded	Limited Detent		18 GHz				Panel Mount	50 Ohm		Between Series	SMA to SMP	Male Pin	SMP Plug	Straight	Female Male	Female Socket SMA Jack	Plug to Jack

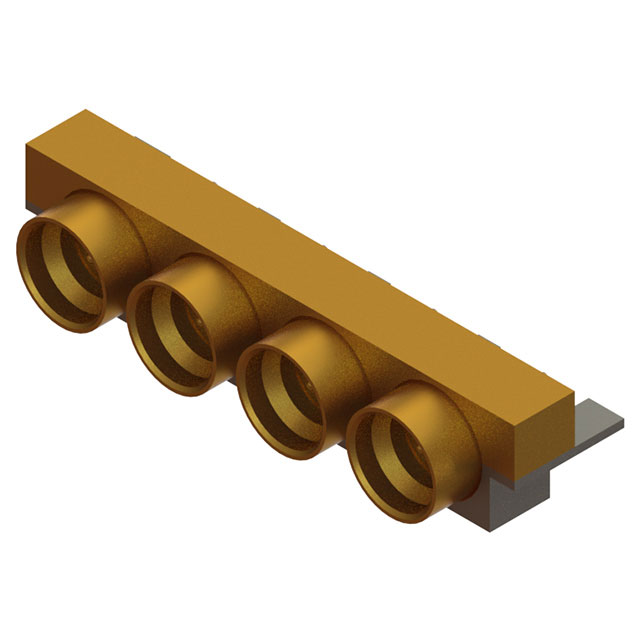

McGill Microwave Systems 9311-60038-TD	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	100 cycles	4	Beryllium Copper		SMP	Solder	Snap-On	Full Detent	Gold	26.5 GHz	Male Pin Plug			Board Edge End Launch	50 Ohm	Solder											Gold
McGill Microwave Systems SF1115-6080			Gold							Snap-On Threaded	Smooth Bore		40 Gbps				Free Hanging (In-Line)	50 Ohm		Between Series	SMP		Male Pin Plug	Straight	Male	Male Pin SMP Plug	Plug to Plug					2.92 mm	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	2.92 mm
McGill Microwave Systems SMP-MSFD-PCT-2	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	500 cycles	1	Beryllium Copper		SMP	Solder	Snap-On	Full Detent	Silver	12 Gbps	Jack Male Pin			Through Hole	50 Ohm	Solder									-65 °C	165 °C
McGill Microwave Systems 1285-6002	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold		1	Beryllium Copper		SMP	Solder	Snap-On	Full Detent	Gold	18 GHz	Male Pin Plug			Board Edge End Launch	50 Ohm	Solder											Gold
