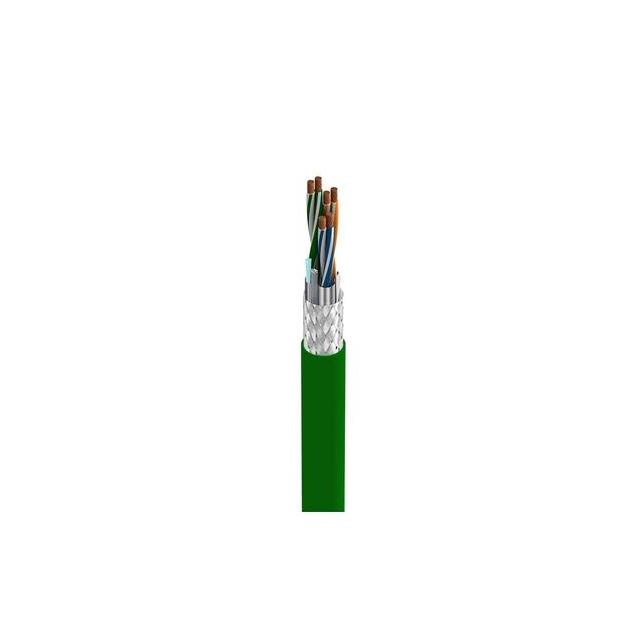

7202A X4P1000

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG GRN

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 24AWG GRN

Technical Specifications

Parameters and characteristics for this part

Specification	7202A X4P1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	40
Features	Oil Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.336 "
Jacket (Insulation) Diameter [diameter]	8.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Wire Gauge	Conductor Material	Shield Material	Conductor Insulation	Jacket (Insulation) Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Coverage	Jacket Color	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 7202A X4P1000	Braid Foil	41 strands	40	300 V	Drain Wire Oil Resistant	24 AWG	Copper Bare	Aluminum Copper Tinned	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Multi-Pair	-20 C	60 °C	1.143 mm	0.045 in	6	85 % 100 %	Green	1000 ft	304.8 m	0.336 "	8.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.73
LCSC	Piece	1	$ 1.45

General part information

6 (3 Pair) Conductor Multi-Pair Cable Green 24 AWG Foil, Braid 1000.0' (304.8m)
