854-22-004-40-601101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 4POS R/A SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 4POS R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Mounting Type	Material	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 854-22-018-20-001101	Piston	Through Hole Right Angle	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Gold	1
Mill-Max Manufacturing Corp. 854-22-003-40-001101	Piston	Surface Mount Right Angle	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Gold	1	3
Mill-Max Manufacturing Corp. 854-22-008-40-601101	Piston	Surface Mount Right Angle	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	8
Mill-Max Manufacturing Corp. 854-22-010-10-001101	Piston	Through Hole	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	10
Mill-Max Manufacturing Corp. 854-22-017-40-001101	Piston	Surface Mount Right Angle	Copper Alloy	0.05 in	1.27 mm	10 Áin	0.25 Ám	Gold	1	17
Mill-Max Manufacturing Corp. 854-22-016-20-601101	Piston	Through Hole Right Angle	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	16
Mill-Max Manufacturing Corp. 854-22-003-10-003101	Piston	Solder Cup Through Hole	Brass Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	3
Mill-Max Manufacturing Corp. 854-22-003-20-601101	Piston	Through Hole Right Angle	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	3
Mill-Max Manufacturing Corp. 854-22-010-20-601101	Piston	Through Hole Right Angle	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1	10
Mill-Max Manufacturing Corp. 854-22-004-40-601101	Piston	Surface Mount Right Angle	Copper Alloy	0.05 in	1.27 mm	20 µin	0.51 µm	Gold	1		4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

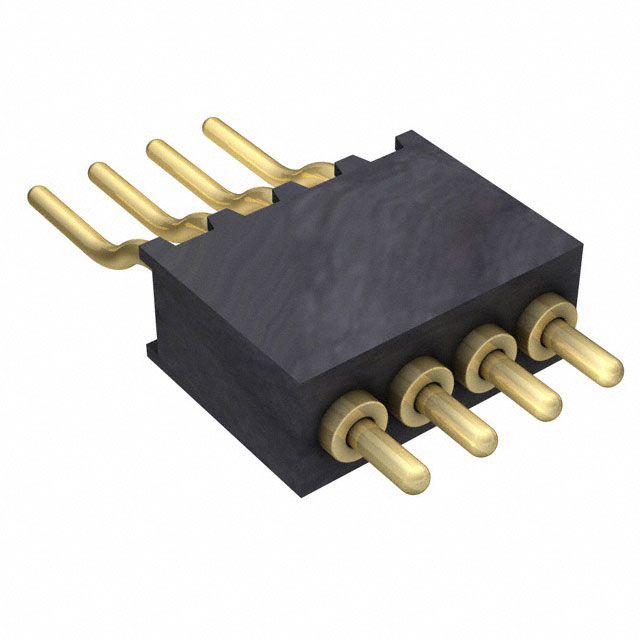

4 Position Spring Piston Connector Surface Mount, Right Angle

Technical documentation and resources

No documents available
