Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-LCD40-DSI1 | B-LCD40-DSI1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | LCD Touchscreen 4 in | LCD Touchscreen 4 in |
| Platform | Discovery | Discovery |
| Type | Display | Display |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
B-LCD40-DSI1 Series
4-inch WVGA TFT LCD board with MIPI DSI interface and capacitive touch screen
| Part | Function | Contents | Type | Platform |
|---|---|---|---|---|
STMicroelectronics B-LCD40-DSI1 | LCD Touchscreen 4 in | Board(s) | Display | Discovery |
STMicroelectronics B-LCD40-DSI1 |
Description
General part information
B-LCD40-DSI1 Series

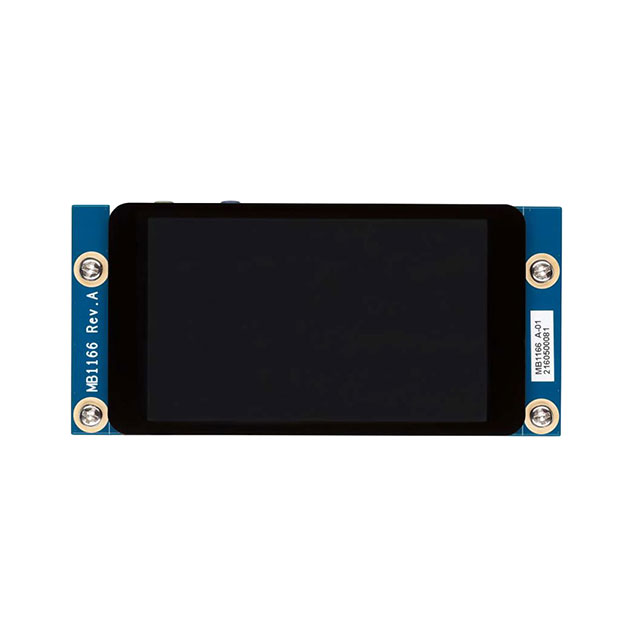

LCD daughterboard (B-LCD40-DSI1) provides a 4-inch WVGA TFT color LCD with a MIPI®DSI interface.
This LCD daughterboard is an optional display board that can be used with a discovery board such as the STM32F769I-DISC1. The evaluation boards STM32F769I-EVAL, STM32F779I-EVAL, STM32469I-EVAL, STM32479I-EVAL as well as the discovery board STM32F769I-DISCO are delivered with this LCD daughterboard already connected.
