RMW-180/60-1200/ADH-0

Active

TE Connectivity Raychem Cable Protection

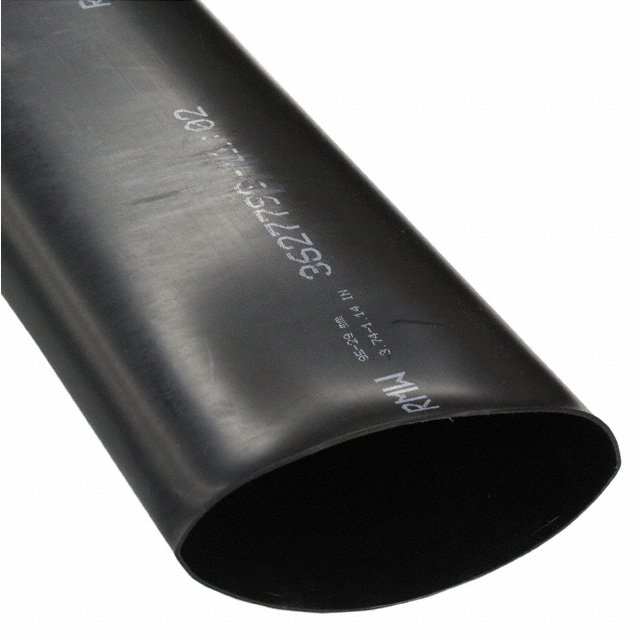

HEATSHRINK 7.087" X 3.94' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RMW-180/60-1200/ADH-0

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 7.087" X 3.94' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RMW-180/60-1200/ADH-0

Color	Black
Features	Adhesive Lined, Chemical Resistant, UV Resistant, Corrosion Resistant, Moisture-Proof, Impact Resistant, Abrasion Resistant
Inner Diameter - Recovered	59.94 mm
Inner Diameter - Recovered	2.36 in
Inner Diameter - Supplied [diameter]	180.01 mm
Inner Diameter - Supplied [diameter]	7.087 "
Length	1200 mm
Length	3.94 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	3.7 mm
Recovered Wall Thickness	0.146 "
Shelf Life	60 Months
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

RAYCHEM RMW Series

Part	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Length	Length	Length [x]	Length [x]	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Raychem Cable Protection RMW-115/34-1200/ADH-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	3.56 mm	0.14 in	Abrasion Resistant Adhesive Lined Chemical Resistant Corrosion Resistant Impact Resistant Moisture-Proof UV Resistant	1.338 "	33.99 mm	114.99 mm	4.527 in	Black	1200 mm	3.94 ft
TE Connectivity Raychem Cable Protection RMW-10/3-1000/ADH-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	1.24 mm	0.049 "	Abrasion Resistant Adhesive Lined Chemical Resistant Corrosion Resistant Impact Resistant Moisture-Proof UV Resistant	0.118 in	2.99 mm	10.01 mm	0.394 in	Black			1 m	3.28 ft
TE Connectivity Raychem Cable Protection RMW-35/12-1000/U-0	Polyolefin (PO) Irradiated	-55 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	0.079 in		Abrasion Resistant Chemical Resistant Impact Resistant Moisture Resistant Strain Resistant UV Resistant	0.472 in	12 mm	35 mm	1.378 in	Black			1 m	3.28 ft	2.01 mm	110 °C
TE Connectivity Raychem Cable Protection RMW-180/60-1200/ADH-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	3.7 mm	0.146 "	Abrasion Resistant Adhesive Lined Chemical Resistant Corrosion Resistant Impact Resistant Moisture-Proof UV Resistant			180.01 mm	7.087 "	Black	1200 mm	3.94 ft					59.94 mm	2.36 in
TE Connectivity Raychem Cable Protection RMW-35/12-1200/U-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	0.079 in		Abrasion Resistant Chemical Resistant Impact Resistant Moisture Resistant Strain Resistant UV Resistant	0.472 in	12 mm	35 mm	1.378 in	Black	1200 mm	3.94 ft			2.01 mm
TE Connectivity Raychem Cable Protection RMW-180/60-1200/U-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	3.2 mm	0.126 "	Abrasion Resistant Chemical Resistant Impact Resistant Moisture Resistant Strain Resistant UV Resistant			180.01 mm	7.087 "	Black	1200 mm	3.94 ft					59.94 mm	2.36 in
TE Connectivity Raychem Cable Protection RMW-75/22-1000/ADH-0	Polyolefin (PO) Irradiated	-55 °C	110 °C	60 Months	35 °C	1	3.5	Tubing Semi Rigid	2.7 mm	0.106 "		0.866 in	22 mm	75.01 mm	2.953 in	Black			1 m	3.28 ft		110 °C
TE Connectivity Raychem Cable Protection RMW-25/8-1000/ADH-0	Polyolefin (PO) Irradiated	-55 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	0.079 in			0.315 in	8 mm	24.99 mm	0.984 in	Black			1 m	3.28 ft	2.01 mm	110 °C
TE Connectivity Raychem Cable Protection RMW-50/16-1200/U-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	0.079 in		Abrasion Resistant Chemical Resistant Impact Resistant Moisture Resistant Strain Resistant UV Resistant	0.63 "	16 mm	50 mm	1.969 in	Black	1200 mm	3.94 ft			2.01 mm
TE Connectivity Raychem Cable Protection RMW-160/50-1200/ADH-0	Polyolefin (PO) Irradiated	-40 °C	110 °C	60 Months	35 °C	1	3	Tubing Semi Rigid	3.7 mm	0.146 "	Abrasion Resistant Adhesive Lined Chemical Resistant Corrosion Resistant Impact Resistant Moisture-Proof UV Resistant	1.969 in	50 mm	160 mm	6.299 in	Black	1200 mm	3.94 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.45
		5	$ 58.01
		10	$ 53.35
		20	$ 49.07
		25	$ 46.97
		50	$ 48.26
		100	$ 44.85

Description

General part information

RAYCHEM RMW Series

Heat Shrink Tubing, Semi Rigid 7.087" (180.01mm) 3 to 1 Black 3.94' (1.20m)
