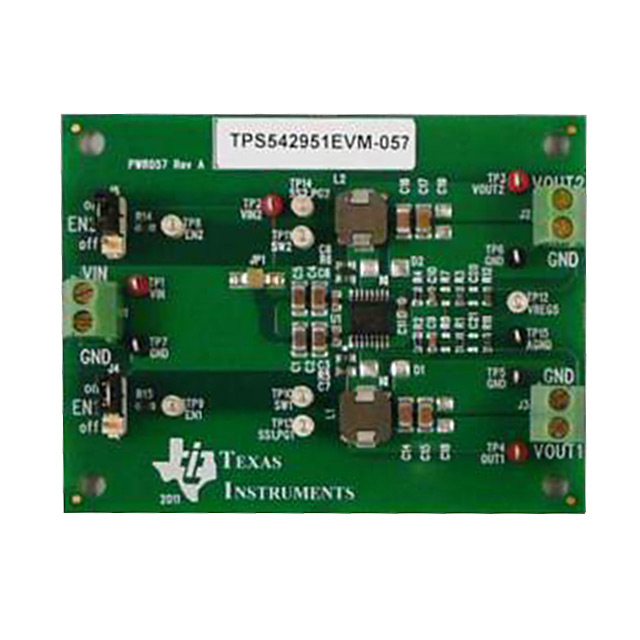

TPS542951EVM-057 - D-CAP2, Eco-Mode

TPS542951EVM-057

Active
Texas Instruments

EVAL MODULE FOR TPS542951-057

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TPS542951EVM-057 - D-CAP2, Eco-Mode

TPS542951EVM-057

Active
Texas Instruments

EVAL MODULE FOR TPS542951-057

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationTPS542951EVM-057TPS542951 Series
Board TypeFully PopulatedFully Populated
Current - Output3 A, 2 A2 - 3 A
Frequency - Switching700 kHz700 kHz
Function-Step-Down
Main PurposeDC/DC, Step DownDC/DC, Step Down
Mounting Type-Surface Mount
Number of Outputs-2
Operating Temperature-85 °C
Operating Temperature--40 °C
Output Configuration-Positive
Output Type-Adjustable
Outputs and Type22
Outputs and TypeNon-IsolatedNon-Isolated
Package / Case-16-VQFN Exposed Pad, 16-PowerTSSOP
Package / Case-4.4 mm
Package / Case-0.173 in
Supplied ContentsBoard(s)Board(s)
Supplier Device Package-16-QFN (4x4), 16-HTSSOP
Synchronous Rectifier-True
Topology-Buck
Utilized IC / PartTPS542951TPS542951
Voltage - Input (Max)-18 V
Voltage - Input (Min)-4.5 V
Voltage - Input [Max]18 V18 V
Voltage - Input [Min]5 V5 V
Voltage - Output3.3 V, 1.5 V1.5 - 3.3 V
Voltage - Output (Max)-7 V
Voltage - Output (Min/Fixed)-0.76 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TPS542951 Series

4.5 V to 18 V input, 2 A / 3 A dual channel synchronous step-down converter, adjustable soft start

PartTopologyVoltage - Output (Min/Fixed) [Min]Output TypeFunctionSupplier Device PackageVoltage - Output (Max) [Max]Synchronous RectifierOutput ConfigurationOperating Temperature [Max]Operating Temperature [Min]Package / CaseFrequency - SwitchingCurrent - OutputVoltage - Input (Min) [Min]Mounting TypeNumber of Outputs [custom]Voltage - Input (Max) [Max]Utilized IC / PartSupplied ContentsVoltage - OutputMain PurposeOutputs and TypeOutputs and TypeVoltage - Input [Max]Voltage - Input [Min]Board TypePackage / Case [y]Package / Case [y]
Texas Instruments
TPS542951RSAR
The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C. The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C.
Buck
0.76 V
Adjustable
Step-Down
16-QFN (4x4)
7 V
Positive
85 °C
-40 °C
16-VQFN Exposed Pad
700 kHz
2 A, 3 A
4.5 V
Surface Mount
2
18 V
Texas Instruments
TPS542951RSAT
The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C. The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C.
Buck
0.76 V
Adjustable
Step-Down
16-QFN (4x4)
7 V
Positive
85 °C
-40 °C
16-VQFN Exposed Pad
700 kHz
2 A, 3 A
4.5 V
Surface Mount
2
18 V
Texas Instruments
TPS542951EVM-057
TPS542951 D-CAP2™, Eco-Mode™ DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
700 kHz
2 A, 3 A
TPS542951
Board(s)
1.5 V, 3.3 V
DC/DC, Step Down
2
Non-Isolated
18 V
5 V
Fully Populated
Texas Instruments
TPS542951PWP
The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C. The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V. The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C.
Buck
0.76 V
Adjustable
Step-Down
16-HTSSOP
7 V
Positive
85 °C
-40 °C
16-PowerTSSOP
700 kHz
2 A, 3 A
4.5 V
Surface Mount
2
18 V
4.4 mm
0.173 in

Description

General part information

TPS542951 Series

The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.

The TPS542951 is available in a 4.4mm × 5.0mm 16 pin TSSOP (PWP) package, and 4mm × 4mm 16 pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C.

The TPS542951 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS542951 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS542951 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS542951 to maintain high efficiency during lighter load conditions. The TPS542951 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
