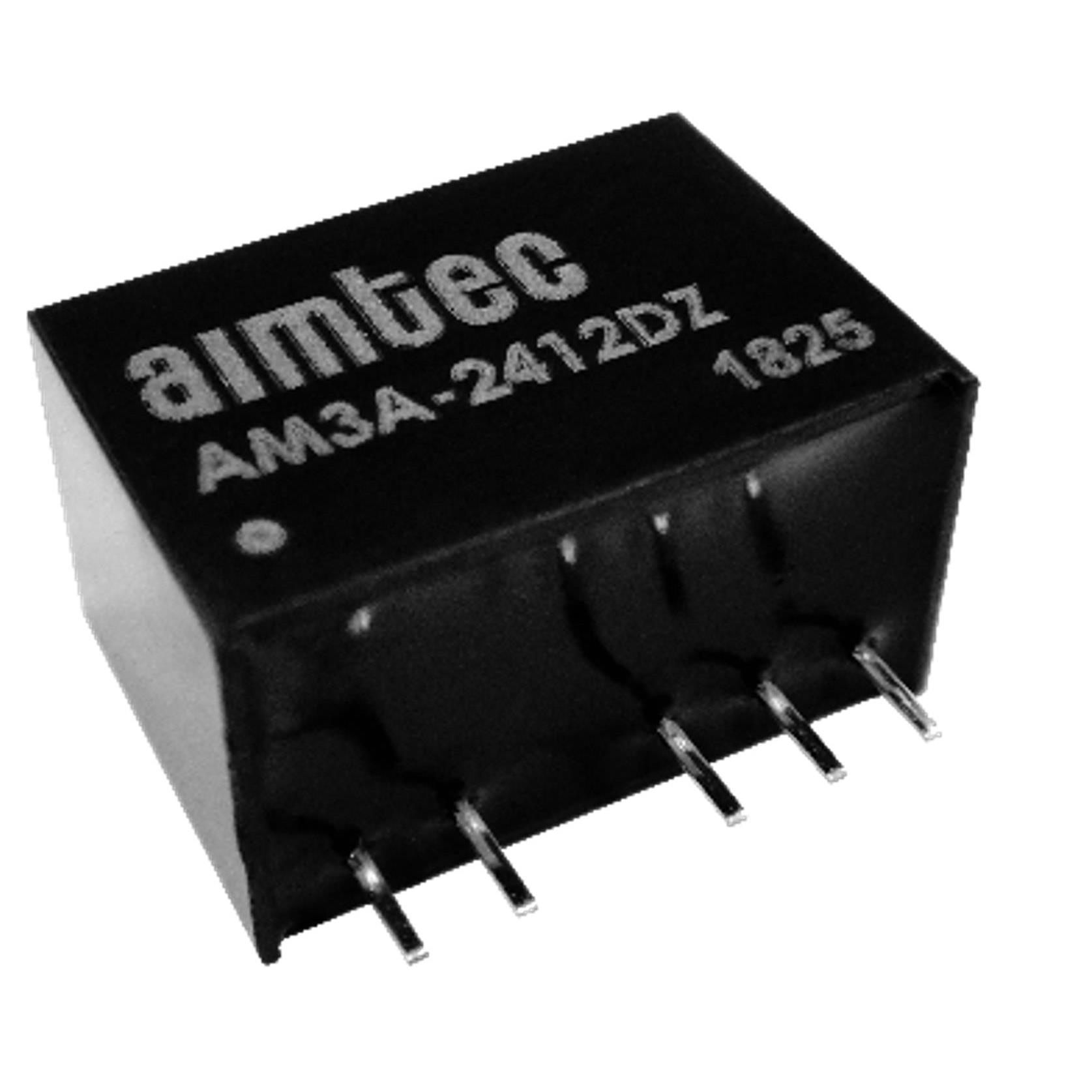

Specification	AM3A-1212DZ

Applications	ITE (Commercial)
Current - Output (Max)	125 mA
Efficiency	82 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	76 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	6-SIP Module
Power (Watts)	3 W
Size / Dimension Height	0.48 in
Size / Dimension Length	0.69 in
Size / Dimension Width	0.37 in
Type	Isolated Module
Voltage - Input (Max)	18 V
Voltage - Input (Min)	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

AM3A Series

Part	Voltage - Input (Min)	Efficiency	Voltage - Output 2	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Type	Package Leads	Package Name	Current - Output (Max)	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Input (Max)	Power (Watts)	Applications	Current - Output (Max) Options	Package / Case	Features	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)
aimtec AM3A-2412DZ	9 V	83 %	-12 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	125 mA	Through Hole	12 V	2	36 V	3 W	ITE (Commercial)
aimtec AM3A-1212DZ	4.5 V	82 %	-12 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	125 mA	Through Hole	12 V	2	18 V	3 W	ITE (Commercial)
aimtec AM3A-1212SZ	4.5 V	83 %		0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	250 mA	Through Hole	12 V	1	18 V	3 W	ITE (Commercial)
aimtec AM3A-2405DZ	9 V	81 %	-5 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	300 mA	Through Hole	5 V	2	36 V	3 W	ITE (Commercial)
aimtec AM3A-1203SZ	4.5 V	75 %		0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	700 mA	Through Hole	3.3 V	1	18 V	2.3 W	ITE (Commercial)
aimtec AM3A-4815DZ	18 V	80 %	-15 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module				Through Hole		2	75 V	3 W	ITE (Commercial)	100mA	6-SIP Module	Remote On/Off	-15 V	15 V
aimtec AM3A-4812DZ	18 V	80 %	-12 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module			125 mA	Through Hole		2	75 V	3 W	ITE (Commercial)		6-SIP Module	Remote On/Off	-12 V	12 V
aimtec AM3A-2405SZ	9 V	82 %		0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	600 mA	Through Hole	5 V	1	36 V	3 W	ITE (Commercial)
aimtec AM3A-4805DZ	18 V	79 %	-5 V	0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module			300 mA	Through Hole		2	75 V	3 W	ITE (Commercial)		6-SIP Module	Remote On/Off	-5 V	5 V
aimtec AM3A-2415SZ	9 V	84 %		0.37 in	0.48 in	0.69 in	76 °C	-40 °C	1.6 kV	Isolated Module	5 Leads	6-SIP Module	200 mA	Through Hole	15 V	1	36 V	3 W	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AM3A-1212DZ | Datasheet
