031-70332

Active

Amphenol RF

CONN MINI BNC JCK STR 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

031-70332

Active

Amphenol RF

CONN MINI BNC JCK STR 75 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-70332

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms

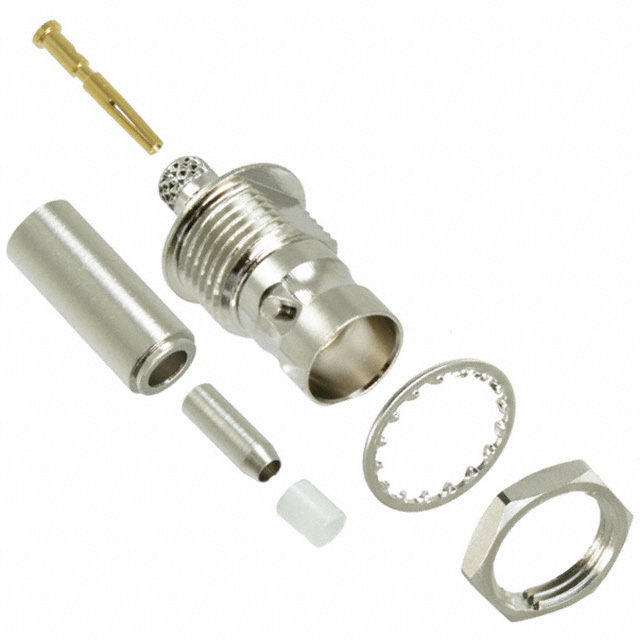

Includes	1 Sleeve, 1 Contact, 1 Lockwasher, 1 Spacer, 1 Nut, 1 Ferrule, 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

031-70 Series

Part	Housing Color	Body Finish	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Material	Body Material	Shield Termination	Number of Ports	Mating Cycles	Fastening Type	Impedance	Connector Style	Connector Type	Dielectric Material	Includes	Mounting Type	Voltage Rating	Mounting Feature	Insertion Loss	Cable Group	Features
Amphenol RF 031-70558-12G	Silver	Nickel	Gold	12 GHz	-30 ░C	85 °C	Crimp	Brass	Phosphor Bronze	Crimp	1	500	Bayonet Lock	75 Ohms	BNC	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)
Amphenol RF 031-70508	Silver	Nickel	Gold	1 GHz	-55 °C	85 °C	Solder	Phosphor Bronze	Zinc Die Cast	Solder	2	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polypropylene (PP)		Panel Mount Right Angle Through Hole	500 V	Bulkhead - Front Side Nut	0.2 dB
Amphenol RF 031-70547-12G	Silver	Nickel	Gold	12 GHz	-30 ░C	85 °C	Crimp	Phosphor Bronze	Brass	Crimp	1	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Ferrule	Free Hanging (In-Line)				Belden 4694R
Amphenol RF 031-70240	Silver	Nickel	Gold	4 GHz	-65 ░C	165 °C	Crimp	Brass Phosphor Bronze	Brass	Crimp	1	500	Bayonet Lock	75 Ohms	BNC	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	500 V		0.2 dB	735A AT&T 735 Belden 735A1
Amphenol RF 031-70526-21	Silver	Nickel	Gold	12 GHz	-65 ░C	165 °C	Solder	Beryllium Copper	Brass	Solder	1	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Board Edge End Launch Panel Mount		Bulkhead - Front Side Nut
Amphenol RF 031-70018	Silver	Nickel	Gold	4 GHz	-65 ░C	165 °C	Solder Cup	Beryllium Copper	Brass	Solder	1	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut		500 V	Bulkhead - Rear Side Nut	0.2 dB		Extended Insulation
Amphenol RF 031-70298	Silver	Nickel	Gold	4 GHz	-65 ░C	165 °C	Crimp	Phosphor Bronze	Brass	Crimp	1	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut		500 V	Bulkhead - Front Side Nut	0.2 dB	735A AT&T 735 Belden 735A1
Amphenol RF 031-70567-12G	Silver	Nickel	Gold	12 GHz	-30 ░C	85 °C	Crimp	Phosphor Bronze	Brass	Crimp	1	500	Bayonet Lock	75 Ohms	BNC	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut		Belden 4505R
Amphenol RF 031-70249	Silver	Nickel	Gold				Solder	Beryllium Copper	Brass	Solder	1	500	Bayonet Lock	75 Ohms	BNC Mini	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)		Through Hole			0.1 dB
Amphenol RF 031-70332	Silver	Nickel	Gold	1 GHz	-40 °C	155 °C	Solder	Beryllium Copper	Brass	Crimp	1	500	Bayonet Lock	75 Ohms	BNC Mini	Female Socket Jack	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut 1 Sleeve 1 Spacer			Bulkhead - Front Side Nut	0.1 dB	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.20
		10	$ 14.36
		25	$ 13.81
		50	$ 13.25
		100	$ 12.52
		300	$ 11.41
		500	$ 10.68
		1000	$ 9.79

Description

General part information

031-70 Series

BNC, Mini Connector Jack, Female Socket 75 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available
