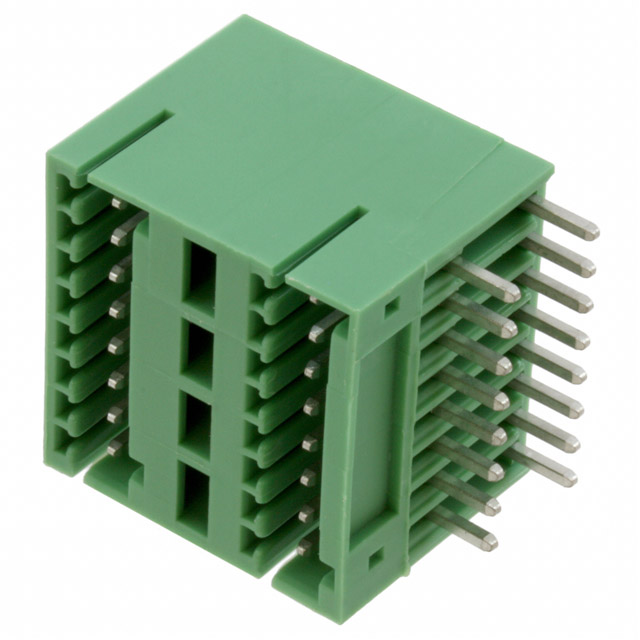

PLUGGABLE TERMINAL BLOCKS 8 POS 2.5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 8 POS 2.5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1894862	MCD Series

Color	Green	Green, Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.15 in	0.138 - 0.15 in
Contact Tail Length	3.81 mm	3.5 - 3.81 mm
Current - IEC	4 A	4 - 8 A
Current - UL	4 A	4 - 8 A
Features	-	Board Guide, Mating Flange
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	21.89 mm	21.89 - 22.71 mm
Insulation Height	0.862 in	0.862 - 0.894 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Number of Positions	16	16
Number of Positions	-	8 - 28
Pitch [x]	0.098 in	0.098 - 0.15 in
Pitch [x]	2.5 mm	2.5 - 3.81 mm
Positions Per Level	8	4 - 14
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V	160 - 320 V
Voltage - UL	125 V	125 - 300 V

Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header

Part	Current - UL	Voltage - IEC	Number of Positions	Voltage - UL	Insulation Height	Insulation Height	Current - IEC	Contact Tail Length	Contact Tail Length	Mounting Type	Material Flammability Rating	Header Orientation	Housing Material	Contact Mating Finish	Termination Style	Type	Pitch [x]	Pitch [x]	Color	Number of Levels	Positions Per Level	Number of Positions	Features
Phoenix Contact 1894862	4 A	320 V	16	125 V	21.89 mm	0.862 in	4 A	0.15 in	3.81 mm	Through Hole	UL94 V-0	90°, Right Angle	Polyamide (PA), Nylon	Tin	Solder	Header, Male Pins, Shrouded (4 Side)	0.098 in	2.5 mm	Green	2	8
Phoenix Contact 1830075	8 A	320 V		300 V	22.71 mm	0.894 "	8 A	0.138 in	3.5 mm	Through Hole	UL94 V-0	90°, Right Angle	Polyamide (PA), Nylon	Tin	Solder	Header, Male Pins, Shrouded (4 Side)	0.15 in	3.81 mm	Green	2	14	28
Phoenix Contact 1829976	8 A	320 V		300 V	22.71 mm	0.894 "	8 A	0.138 in	3.5 mm	Through Hole	UL94 V-0	90°, Right Angle	Polyamide (PA), Nylon	Tin	Solder	Header, Male Pins, Shrouded (4 Side)	0.15 in	3.81 mm	Green	2	4	8
Phoenix Contact 1961164		160 V			21.89 mm	0.862 in	4 A	0.15 in	3.81 mm	Through Hole	UL94 V-0	90°, Right Angle	Polyamide (PA), Nylon	Tin	Solder	Header, Male Pins, Shrouded (4 Side)	0.098 in	2.5 mm	Black	2	4	8
Phoenix Contact 1830198	8 A	320 V		300 V	22.71 mm	0.894 "	8 A	0.138 in	3.5 mm	Through Hole	UL94 V-0	90°, Right Angle	Polyamide (PA), Nylon	Tin	Solder	Header, Male Pins, Shrouded (4 Side)	0.15 in	3.81 mm	Green	2	11	22 positions	Board Guide, Mating Flange
