General part information
Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1830198 | MCD Series |
|---|---|---|
| Color | Green | Green, Black |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 - 3.81 mm |
| Contact Tail Length | 0.138 in | 0.138 - 0.15 in |
| Current - IEC | 8 A | 4 - 8 A |
| Current - UL | 8 A | 4 - 8 A |
| Features | Board Guide, Mating Flange | Board Guide, Mating Flange |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 0.894 " | 0.862 - 0.894 in |
| Insulation Height | 22.71 mm | 21.89 - 22.71 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 2 | 2 |
| Number of Positions | 22 positions | 8 - 28 |
| Number of Positions | - | 16 |
| Pitch [x] | 0.15 in | 0.098 - 0.15 in |
| Pitch [x] | 3.81 mm | 2.5 - 3.81 mm |
| Positions Per Level | 11 | 4 - 14 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V | 160 - 320 V |
| Voltage - UL | 300 V | 125 - 300 V |
Pluggable Terminal Blocks 4 Pos 2.5mm pitch Through Hole Header
| Part | Current - UL | Voltage - IEC | Number of Positions | Voltage - UL | Insulation Height | Insulation Height | Current - IEC | Contact Tail Length | Contact Tail Length | Mounting Type | Material Flammability Rating | Header Orientation | Housing Material | Contact Mating Finish | Termination Style | Type | Pitch [x] | Pitch [x] | Color | Number of Levels | Positions Per Level | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1894862 | 4 A | 320 V | 16 | 125 V | 21.89 mm | 0.862 in | 4 A | 0.15 in | 3.81 mm | Through Hole | UL94 V-0 | 90°, Right Angle | Polyamide (PA), Nylon | Tin | Solder | Header, Male Pins, Shrouded (4 Side) | 0.098 in | 2.5 mm | Green | 2 | 8 | ||
Phoenix Contact 1830075 | 8 A | 320 V | 300 V | 22.71 mm | 0.894 " | 8 A | 0.138 in | 3.5 mm | Through Hole | UL94 V-0 | 90°, Right Angle | Polyamide (PA), Nylon | Tin | Solder | Header, Male Pins, Shrouded (4 Side) | 0.15 in | 3.81 mm | Green | 2 | 14 | 28 | ||
Phoenix Contact 1829976 | 8 A | 320 V | 300 V | 22.71 mm | 0.894 " | 8 A | 0.138 in | 3.5 mm | Through Hole | UL94 V-0 | 90°, Right Angle | Polyamide (PA), Nylon | Tin | Solder | Header, Male Pins, Shrouded (4 Side) | 0.15 in | 3.81 mm | Green | 2 | 4 | 8 | ||
Phoenix Contact 1961164 | 160 V | 21.89 mm | 0.862 in | 4 A | 0.15 in | 3.81 mm | Through Hole | UL94 V-0 | 90°, Right Angle | Polyamide (PA), Nylon | Tin | Solder | Header, Male Pins, Shrouded (4 Side) | 0.098 in | 2.5 mm | Black | 2 | 4 | 8 | ||||

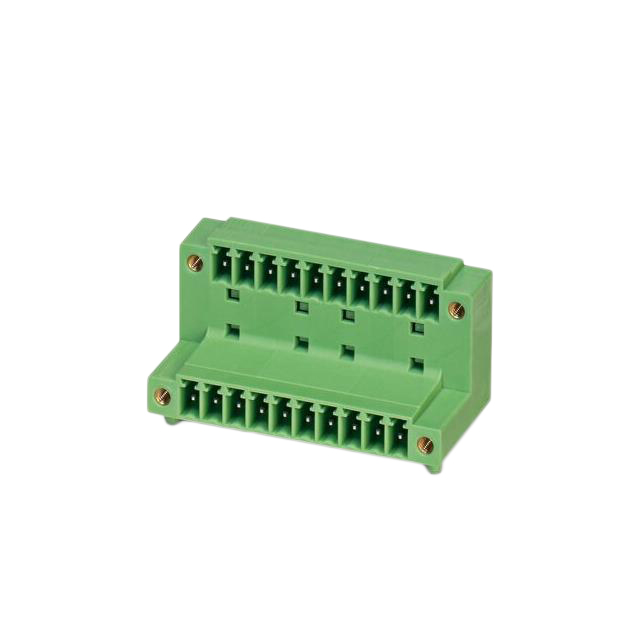

Phoenix Contact 1830198 | 8 A | 320 V | 300 V | 22.71 mm | 0.894 " | 8 A | 0.138 in | 3.5 mm | Through Hole | UL94 V-0 | 90°, Right Angle | Polyamide (PA), Nylon | Tin | Solder | Header, Male Pins, Shrouded (4 Side) | 0.15 in | 3.81 mm | Green | 2 | 11 | 22 positions | Board Guide, Mating Flange |
