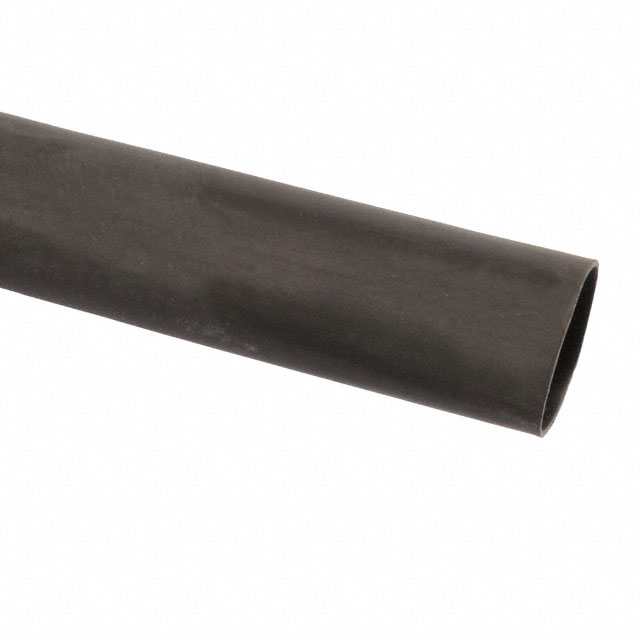

V2-1.5-0-SP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.083" BLACK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Versafit V2/V4 Tubing Spec +1

V2-1.5-0-SP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.083" BLACK METER

Deep-Dive with AI

DocumentsDatasheet Versafit V2/V4 Tubing Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V2-1.5-0-SP-SM

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.76 mm
Inner Diameter - Recovered [diameter]	0.03 in
Inner Diameter - Supplied [diameter]	0.083 in
Inner Diameter - Supplied [diameter]	2.11 mm
Length	50.8 mm, 25 m, 25.4 mm, 200 m, 38.1 mm, 76.2 mm, 19.05 mm
Length	2 ", 1 in, 1.5 ", 3 ", 0.75 "
Length	0.167 ', 82 ft, 0.083 ft, 656.2 ft, 0.125 ', 0.25 ft, 0.062 '
Length	Enter Number of Meters in Order Quantity
Length [x]	1 m, 2 m, 101.6 mm, 5 m
Length [x]	3.28 ft, 6.56 ft, 0.333 ft, 16.4 ft
Length [x]	4 "
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.014 "
Recovered Wall Thickness	0.36 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	656.2 '
Spool Size	200 m
Storage/Refrigeration Temperature [Max]	95 °F, 35 °C
Storage/Refrigeration Temperature [Min]	64 °F, 65 °F, 18 °C
Type	Tubing, Flexible

RAYCHEM Versafit V2 Series

Heat Shrink Tubing & Sleeves HS-TBG 32.1MM FL BK PRICE PER METER

Part	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shrinkage Ratio	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Color	Features	Length	Length	Length	Length [x]	Length [x]	Length	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered	Spool Size	Spool Size	Length
TE Connectivity Raychem Cable Protection V2-3.0-6-SP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.43 mm	0.017 in	Blue	Flame Retardant
TE Connectivity Raychem Cable Protection V2-3.0-2-SP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.43 mm	0.017 in	Red	Flame Retardant
TE Connectivity Raychem Cable Protection V2-2.5-0-SP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.43 mm	0.017 in	Black	Flame Retardant	0.062 ' 0.083 ft 0.125 ' 82 ft 656.2 ft	19.05 mm 25 m 25.4 mm 38.1 mm 152.4 mm 200 m	0.75 " 1 in 1.5 " 6 "	0.333 ft 3.28 ft 6.56 ft 39.4 ft	1 m 2 m 12 m 101.6 mm	0.5 '	4 "	0.122 "	3.1 mm	0.049 in	1.24 mm
TE Connectivity Raychem Cable Protection V2-13.0-5-FSP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.66 mm	0.026 "	Green	Flame Retardant								0.532 in	13.51 mm	0.256 in	6.5 mm
TE Connectivity Raychem Cable Protection V2-12.0-0-FSP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.56 mm	0.022 "	Black	Flame Retardant	0.083 ft 0.125 ' 0.25 ft 82 ft 164 ft	25 m 25.4 mm 38.1 mm 50 m 76.2 mm 152.4 mm	1 in 1.5 " 3 " 6 "	3.28 ft 6.56 ft 16.4 ft 39.4 ft	1 m 2 m 5 m 12 m	0.5 '		0.5 in	12.7 mm			5.99 mm	0.236 in
TE Connectivity Raychem Cable Protection V2-28.0-0-FSP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin	144 Months	0.89 mm	0.035 in	Black	Flame Retardant								1.161 in	29.49 mm	0.55 in	13.97 mm
TE Connectivity Raychem Cable Protection V2-6.0-4-SP	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.56 mm	0.022 "	Yellow	Flame Retardant								0.26 in	6.6 mm			3 mm	0.118 in
TE Connectivity Raychem Cable Protection V2-22.0-0-FSP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.89 mm	0.035 in	Black	Flame Retardant				3.28 ft	1 m			0.913 in	23.19 mm	0.433 "	11 mm
TE Connectivity Raychem Cable Protection V2-30.0-4-FSP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 65 °F	35 °C	Polyolefin (PO)	144 Months	0.89 mm	0.035 in	Yellow	Flame Retardant								1.264 in	32.11 mm	0.591 in	15.01 mm
TE Connectivity Raychem Cable Protection V2-1.5-0-SP-SM	70 °C	125 °C	-30 ░C	Tubing Flexible	2 to 1	18 °C 64 °F 65 °F	35 °C 95 °F	Polyolefin (PO)	144 Months	0.36 mm	0.014 "	Black	Flame Retardant	0.062 ' 0.083 ft 0.125 ' 0.167 ' 0.25 ft 82 ft 656.2 ft	19.05 mm 25 m 25.4 mm 38.1 mm 50.8 mm 76.2 mm 200 m	0.75 " 1 in 1.5 " 2 " 3 "	0.333 ft 3.28 ft 6.56 ft 16.4 ft	1 m 2 m 5 m 101.6 mm		4 "	0.083 in	2.11 mm	0.03 in	0.76 mm			656.2 '	200 m	Enter Number of Meters in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.62
		1	$ 1.43
		1	$ 20.66
		1	$ 5.62
		5	$ 1.30
		5	$ 2.38
		5	$ 17.39
		5	$ 5.40
		10	$ 1.81
		10	$ 4.16
		10	$ 15.76
		10	$ 0.99
		25	$ 0.94
		25	$ 14.68
		25	$ 3.82
		25	$ 1.72
		50	$ 1.62
		50	$ 0.89
		50	$ 0.03
		50	$ 3.60
		50	$ 0.08
		50	$ 0.05
		50	$ 0.06
		50	$ 0.04
		50	$ 0.03
		50	$ 14.13
		100	$ 1.52
		100	$ 0.83
		100	$ 0.05
		100	$ 0.03
		100	$ 0.03
		100	$ 13.81
		100	$ 0.04
		100	$ 0.07
		100	$ 0.06
		100	$ 3.37
		250	$ 0.03
		250	$ 0.04
		250	$ 0.05
		250	$ 0.06
		250	$ 0.03
		250	$ 0.03
		500	$ 0.04
		500	$ 0.05
		500	$ 0.03
		500	$ 0.02
		500	$ 0.06
		500	$ 0.03
		1250	$ 0.05
		1250	$ 0.03
		1250	$ 0.04
		1250	$ 0.03
		1250	$ 0.06
		1250	$ 0.02
	Digi-Spool®, Continuous Spool	1	$ 1.62
		2	$ 1.49
		3	$ 1.42
		5	$ 1.33
		7	$ 1.28
		10	$ 1.22
		25	$ 1.10
		50	$ 1.01
		100	$ 0.93
	Spool	200	$ 0.60
		400	$ 0.53
		600	$ 0.49
		1000	$ 0.48

Description

General part information

RAYCHEM Versafit V2 Series

Heat Shrink Tubing & Sleeves HS-TBG 32.1MM FL BK PRICE PER METER

Documents

Technical documentation and resources

Datasheet

Versafit V2/V4 Tubing Spec

Datasheet
