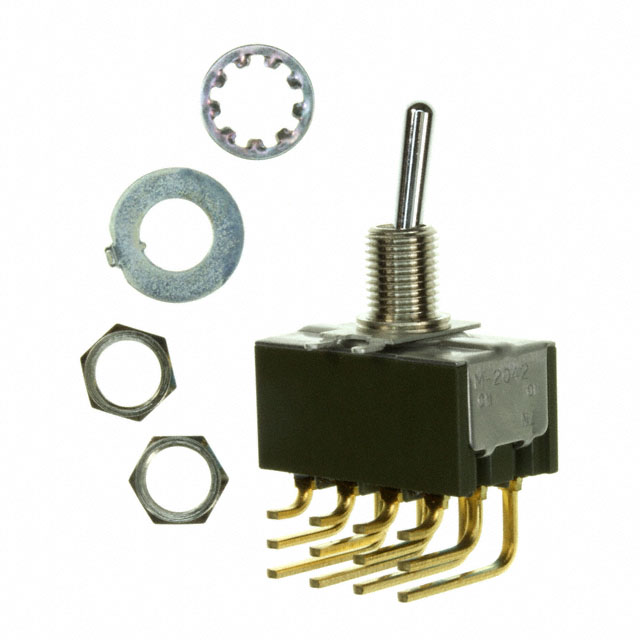

M2042SS1G45

Obsolete

NKK Switches

ANGLE PC MOUNT MINIATURE TOGGLE SWITCH; POLES: 4PDT; CIRCUITS: ON-ON; CURRENT RATING: 0.4VA (AC/DC); RATING (AC): 28V; RATING (DC): 28V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 10.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT, RIGHT ANGLE, VERTICAL; TERMINATION STYLE: PC PIN; PANEL CUTOUT DIMENSIONS: CIRCULAR - 6.50MM DIA; BUSHING THREAD: 14614; FEATURES: EPOXY SEALED TERMINALS; RATING: 0.4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Mini Toggle Datasheet Datasheet

M2042SS1G45

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsM Series Mini Toggle Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2042SS1G45

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	4PDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2042SS Series

Part	Illumination	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - AC	Termination Style	Actuator Type	Electrical Life	Voltage Rating - DC	Actuator Material	Bushing Thread	Switch Function	Current Rating (Amps)	Circuit	Actuator Length [x]	Mounting Type
NKK Switches M2042SS1W01	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Solder Lug	Standard Round	25000 Steps	30 V	Brass Chrome Plated	1/4-40	On-On	4 A 6 A	4PDT
NKK Switches M2042SS1W03-CF	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Green Cap	125 V	PC Pin	Standard Round with Cap	25000 Steps	30 V	Brass Chrome Plated	1/4-40	On-On	4 A 6 A	4PDT	13.1 mm
NKK Switches M2042SS1W01-BA	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Black Cap	125 V	Solder Lug	Standard Round with Cap	25000 Steps	30 V	Brass Chrome Plated	1/4-40	On-On	4 A 6 A	4PDT	13.5 mm
NKK Switches M2042SS1G45	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	28 V	PC Pin	Standard Round	50000 Cycles	28 V	Brass Chrome Plated	1/4-40	On-On	0.4 VA	4PDT		Panel Mount Right Angle Vertical
NKK Switches M2042SS1G45-BA	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Black Cap	28 V	PC Pin	Standard Round with Cap	50000 Cycles	28 V	Brass Chrome Plated	1/4-40	On-On	0.4 VA	4PDT	13.5 mm	Panel Mount Right Angle Vertical
NKK Switches M2042SS1G03-BC	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Red Cap	28 V	PC Pin	Standard Round with Cap	50000 Cycles	28 V	Brass Chrome Plated	1/4-40	On-On	0.4 VA	4PDT	13.5 mm
NKK Switches M2042SS1W03-BC	Non-Illuminated	6.5 mm	-30 ░C	85 °C	Red Cap	125 V	PC Pin	Standard Round with Cap	25000 Steps	30 V	Brass Chrome Plated	1/4-40	On-On	4 A 6 A	4PDT	13.5 mm
