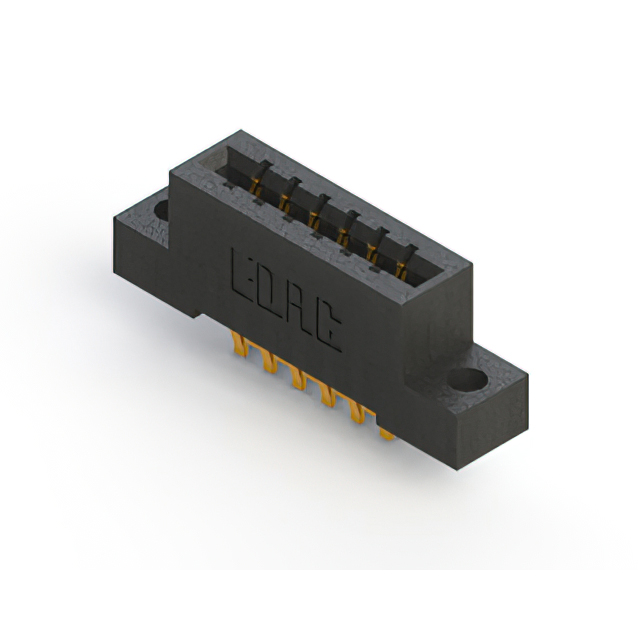

379-012-560-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 12POS 0.150

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

379-012-560-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 12POS 0.150

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	379-012-560-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

379-012 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Gender	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Termination Rows	Pitch [x]	Pitch [x]	Contact Material	Color	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Contact Type	Termination
EDAC Inc. 379-012-555-203	10 Áin	0.25 Ám	Card Extender	Gold	Female	12	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Cantilever	Solder
EDAC Inc. 379-012-544-204	10 Áin	0.25 Ám		Gold	Female	12	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2	Cantilever	Wire Wrap
EDAC Inc. 379-012-556-203	10 Áin	0.25 Ám	Card Extender	Gold	Female	12	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Cantilever	Solder
EDAC Inc. 379-012-555-201	10 Áin	0.25 Ám	Card Extender	Gold	Female	12	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6				2	Cantilever	Solder
EDAC Inc. 379-012-540-201	10 Áin	0.25 Ám		Gold	Female	12	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6				2	Cantilever	Wire Wrap
EDAC Inc. 379-012-560-204	10 Áin	0.25 Ám	Card Extender	Gold	Female	12	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2	Cantilever	Solder
EDAC Inc. 379-012-521-203	10 Áin	0.25 Ám		Gold	Female	12	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Cantilever	Solder
EDAC Inc. 379-012-523-202	10 Áin	0.25 Ám		Gold	Female	12	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	2	Cantilever	Solder
EDAC Inc. 379-012-542-203	10 Áin	0.25 Ám		Gold	Female	12	Through Hole	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Cantilever	Wire Wrap
EDAC Inc. 379-012-560-207	10 Áin	0.25 Ám	Card Extender	Gold	Female	12	Board Edge Straddle Mount	-40 °C	105 ░C	Polyester Thermoplastic	2	0.15 in	3.81 mm	Copper Alloy	Black	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	6		Flush Mount M3 Threaded Insert Top Opening		2	Cantilever	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.72
Newark	Each	25	$ 9.53
		50	$ 9.31
		100	$ 8.86
		250	$ 8.64
		500	$ 8.33

Description

General part information

379-012 Series

12 Position Female Connector Non Specified - Dual Edge Gold 0.150" (3.81mm) Black
