HC4-HP-DC48V

Obsolete

Panasonic Electric Works

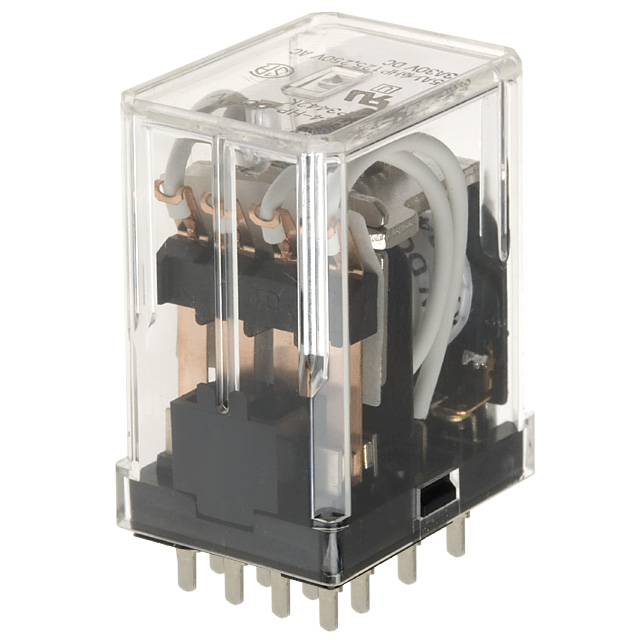

RELAY GEN PURPOSE 4PDT 5A 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Standards Chart +2

HC4-HP-DC48V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 48V

Deep-Dive with AI

DocumentsHow to Read Date Codes Standards Chart +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HC4-HP-DC48V

Approval Agency	VDE, CSA, UR
Coil Current	18.5 mA
Coil Resistance	2.6 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Load - Max Switching [Max]	1250 VA
Mounting Type	Through Hole
Must Operate Voltage	38.4 VDC
Must Release Voltage	4.8 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

HC4-HP Series

Part	Operate Time	Coil Type	Approval Agency	Mounting Type	Must Operate Voltage	Switching Voltage	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Resistance	Must Release Voltage	Termination Style	Load - Max Switching [Max]	Contact Material	Coil Voltage	Coil Current	Relay Type	Contact Rating (Current)	Features
Panasonic Electric Works HC4-HP-AC12V	20 ms	Non Latching	CSA UR VDE	Through Hole	9.6 VAC/DC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	120 Ohms	3.6 VAC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	12 VAC/DC	100 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC48V	20 ms	Non Latching	CSA UR VDE	Through Hole	38.4 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	2.6 kOhms	4.8 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	48 VDC	18.5 mA	General Purpose	5 A
Panasonic Electric Works HC4-HPL-DC48V	20 ms	Non Latching	CSA UR VDE	Through Hole	38.4 VDC	250 VAC	20 ms	60 °C	-50 °C	4PDT (4 Form C)	2.6 kOhms	4.8 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	48 VDC	18.5 mA	General Purpose	5 A	Lighted Indicator
Panasonic Electric Works HC4-HP-DC24V-H67	20 ms	Non Latching	CSA UR VDE	Through Hole	19.2 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	650 Ohms	2.4 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	24 VDC	37 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-AC240V	20 ms	Non Latching	CSA UR VDE	Through Hole	192 VAC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	48 kOhms	72 VAC/DC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	240 VAC	5 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC24V-H87	20 ms	Non Latching	CSA UR VDE	Through Hole	19.2 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	650 Ohms	2.4 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	24 VDC	37 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC6V	20 ms	Non Latching	CSA UR VDE	Through Hole	4.8 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	40 Ohms	0.6 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)		150 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC12V	20 ms	Non Latching	CSA UR VDE	Through Hole	9.6 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	160 Ohms	1.2 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	12 VDC	75 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC110V	20 ms	Non Latching	CSA UR VDE	Through Hole	88 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)		11 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	110 VDC	10 mA	General Purpose	5 A
Panasonic Electric Works HC4-HP-DC24V	20 ms	Non Latching	CSA UR VDE	Through Hole	19.2 VDC	250 VAC	20 ms	70 °C	-50 °C	4PDT (4 Form C)	650 Ohms	2.4 VDC	PC Pin	1250 VA	Gold (Au) Silver Nickel (AgNi)	24 VDC	37 mA	General Purpose	5 A
