095FJZFJZSH-024

Active

Amphenol RF

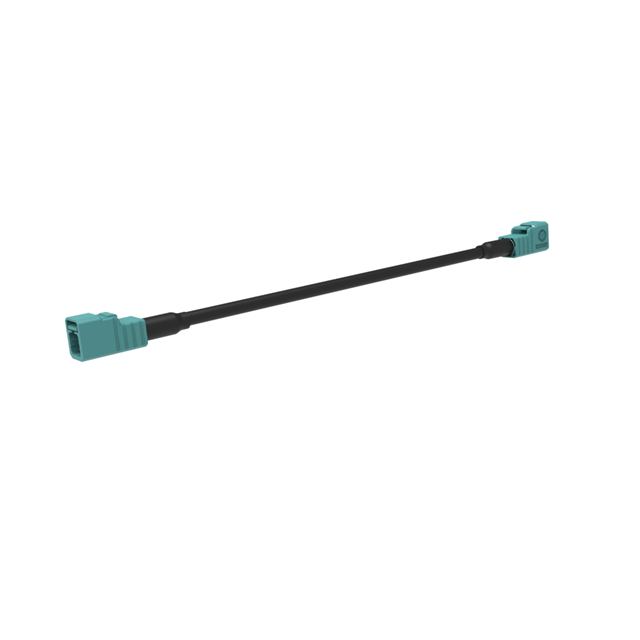

CBL ASSY FAKRA JACK TO JACK 24"

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY FAKRA JACK TO JACK 24"

Technical Specifications

Parameters and characteristics for this part

Part	Color	Cable Impedance	Length	Length	Length	Style	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Features	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Contact Gender	Cable Type
Amphenol RF 095FJZFJZSHM500	Black	50 Ohms	196.9 in	5 m	16.4 ft	Fakra to Fakra	Fakra III (Gen 3.0) Jack	85 °C	-40 °C	Shielded Z Code	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	3 GHz	Free Hanging (In-Line)	50 Ohms	Female	Female	RG-174
Amphenol RF 095FJZFJZSH-024	Black	50 Ohms	24 "	609.6 mm		Fakra to Fakra	Fakra III (Gen 3.0) Jack	85 °C	-40 °C	Shielded Z Code	Free Hanging (In-Line)	Fakra III (Gen 3.0) Jack	3 GHz	Free Hanging (In-Line)	50 Ohms	Female	Female	RG-174
Amphenol RF 095FJZFPZAHM100	Black	50 Ohms	39.4 in	1 m	3.3 ft	Fakra to Fakra	Fakra II (Gen 2.0) Plug	85 °C	-40 °C	Shielded Z Code	Free Hanging (In-Line)	Fakra Gen 3.5 Jack Right Angle	3 GHz	Free Hanging (In-Line)	50 Ohms	Male	Female	RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial Fakra to Fakra RG-174 24.00" (609.60mm)

Technical documentation and resources

No documents available
