WO-3709V-03

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR

Part	Size / Dimension [x]	Size / Dimension [y]	NEMA Frame Size	Features	Current Rating (Amps)	Termination Style	Coil Resistance	Voltage - Rated	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Rotor Inertia	Steps per Revolution	Coil Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Step Angle
LIN ENGINEERING WO-3709V-03	1.44 in, 36.58 mm	1.44 in, 36.58 mm	14	Round Shaft	1.2 A	Wire Leads	3 Ohms	24 VDC	113 mNm	16 oz-in	1.22 in	31 mm	0.308 gcm²	400	Bipolar	20 mm	0.787 in	50 °C	-20 C	0.197 in	5 mm	0.9 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

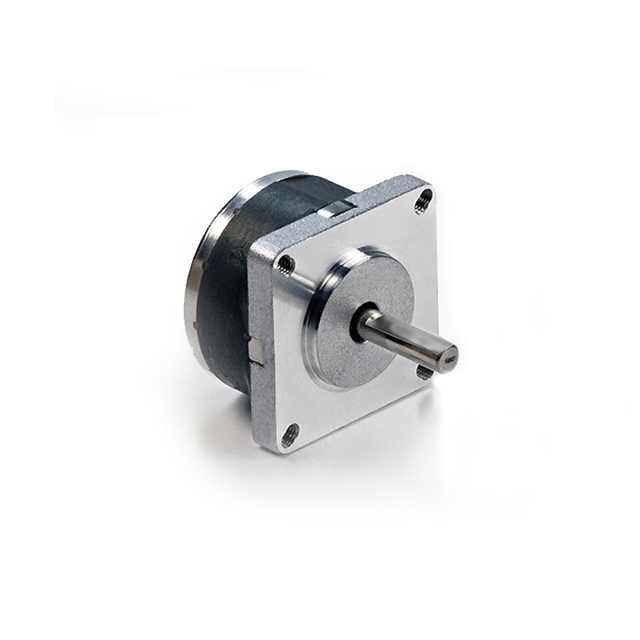

Bipolar Stepper Motor Frame Size 14 400.0 Step 1.2 A 24VDC
