FTE-160-03-G-DV

Active

Samtec Inc.

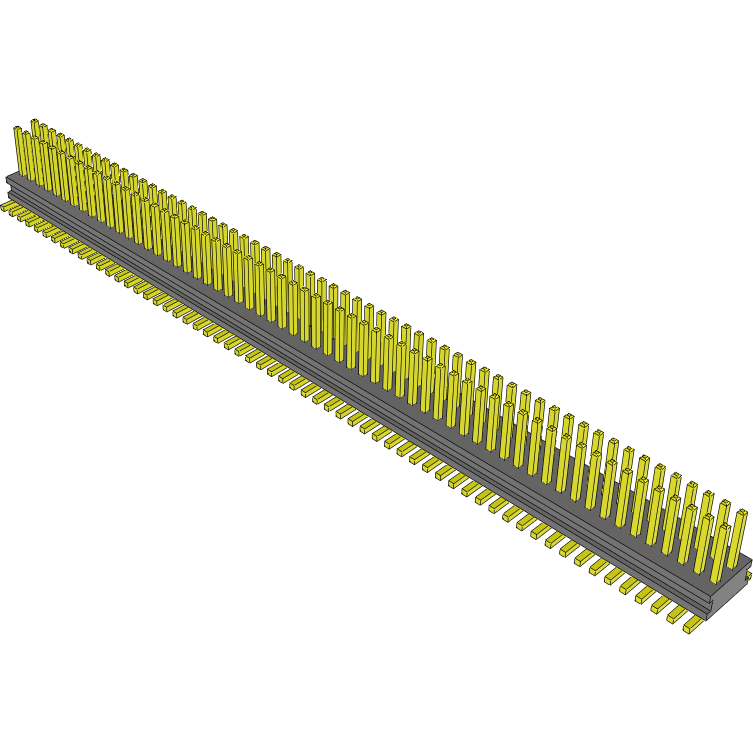

CONN HEADER SMD 120POS 0.8MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTE-160-03-G-DV

Active

Samtec Inc.

CONN HEADER SMD 120POS 0.8MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTE-160-03-G-DV

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.055 in
Insulation Height [z]	1.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating	1.2 mm
Row Spacing - Mating	0.047 in
Shrouding	Unshrouded
Termination	Solder

FTE-160 Series

Part	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Shape	Insulation Material	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Termination	Number of Rows	Material Flammability Rating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions	Insulation Color	Features	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. FTE-160-01-G-DV-EP-A-TR	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black
Samtec Inc. FTE-160-01-G-DV-EC-A	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black	Board Lock End Shrouds
Samtec Inc. FTE-160-03-G-DV	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C			Gold	120	Black		3.05 mm	0.12 in
Samtec Inc. FTE-160-01-G-DV-ES-A-P	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black
Samtec Inc. FTE-160-01-G-DV	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black				3 µin	0.076 µm
Samtec Inc. FTE-160-03-G-DV-A-TR	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C			Gold	120	Black	Board Guide	3.05 mm	0.12 in
Samtec Inc. FTE-160-01-G-DV-ES	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black	End Shrouds
Samtec Inc. FTE-160-01-G-DV-A-P	Male Pin	0.055 in	1.4 mm	Square	Liquid Crystal Polymer (LCP)	Header	Gold	All	10 çin	0.25 çm	0.031 in	0.8 mm	Solder	2	UL94 V-0	Unshrouded	1.2 mm	0.047 in	Push-Pull	Surface Mount	2.7 A	Phosphor Bronze	-55 °C	125 °C	1.9 mm	0.075 in	Gold	120	Black	Board Guide Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 22.76

Description

General part information

FTE-160 Series

Connector Header Surface Mount 120 position 0.031" (0.80mm)

Documents

Technical documentation and resources
