EN2C2F20G3W

Active

Switchcraft Inc.

CONN PLUG FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C2F20G3W

Active

Switchcraft Inc.

CONN PLUG FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.87

Description

General part information

EN2C2F Series

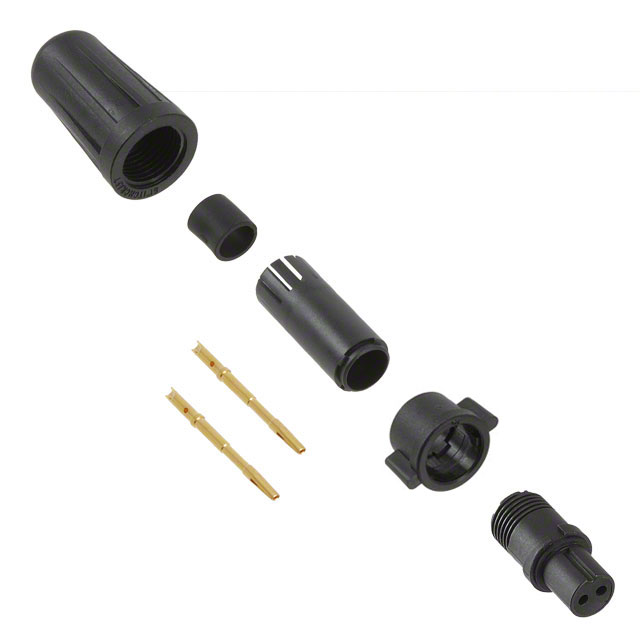

2 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C2F20G3W	EN2C2F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening [Max] [custom]	0.22 in	0.22 in
Cable Opening [Max] [custom]	5.59 mm	5.59 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3.5 A	3.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell, Winged	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	250 VAC	250 VAC

EN2C2F Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Backshell Material, Plating	Applications	Orientation	Contact Finish - Mating	Ingress Protection	Fastening Type	Primary Material	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shielding	Color	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Voltage Rating	Connector Type	Mounting Type	Number of Positions	Features	Termination	Current Rating (Amps)	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Switchcraft Inc. EN2C2F20G3	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy	0.18 in	0.22 in	4.57 mm	5.59 mm	Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut	Crimp, Solder Cup	3.5 A	UL94 V-0
Switchcraft Inc. EN2C2F20G3W	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy	0.18 in	0.22 in	4.57 mm	5.59 mm	Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut, Winged	Crimp, Solder Cup	3.5 A	UL94 V-0
Switchcraft Inc. EN2C2F20G1W	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut, Winged	Crimp, Solder Cup	3.5 A	UL94 V-0	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C2F20G2W	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut, Winged	Crimp, Solder Cup	3.5 A	UL94 V-0			4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C2F20DC	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut	Crimp, Solder Cup	3.5 A	UL94 V-0
Switchcraft Inc. EN2C2F20G1	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut	Crimp, Solder Cup	3.5 A	UL94 V-0	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C2F20DCW	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut, Winged	Crimp, Solder Cup	3.5 A	UL94 V-0
Switchcraft Inc. EN2C2F20G2	Thermoplastic	Communication Systems, Industrial, Marine, Medical	Keyed	Gold	IP66, IP67, IP68	Bayonet Lock	Plastic	Copper Alloy					Unshielded	Black	85 °C	-40 °C	Elastomer	250 VAC	Female Sockets, Plug	Free Hanging (In-Line)	2	Backshell, Coupling Nut	Crimp, Solder Cup	3.5 A	UL94 V-0			4.57 mm	3.56 mm	0.14 in	0.18 in
