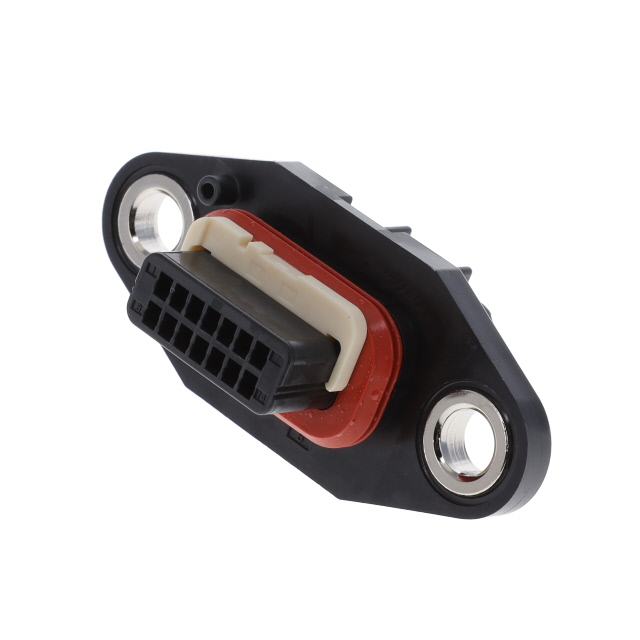

ZE064W-14DP-HU/R(A)

Active

Hirose Electric Co Ltd

CONN PLUG HSG 14POS

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

CONN PLUG HSG 14POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZE064W-14DP-HU/R(A)	ZE064W Series

Color	Black	Black
Connector Type	Plug	Plug, Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Fastening Type	Latch Holder	Latch Holder, Latch Lock, Locking Ramp
Features	-	Sealed, Waterproof
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	-	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	14	8 - 24
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C

CONN PLUG HSG 14POS

Part	Connector Type	Color	Insulation Material	Number of Rows	Fastening Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Number of Positions	Mounting Type	Note	Features
Hirose Electric Co Ltd ZE064W-14DP-HU/R(A)	Plug	Black	Nylon, Polyamide (PA)	2	Latch Holder	Male Pin	125 °C	-40 °C	Crimp	14
Hirose Electric Co Ltd ZE064W-24DP-HU/R(A)	Plug	Black	Nylon, Polyamide (PA)	2	Latch Holder	Male Pin	125 °C	-40 °C	Crimp	24
Hirose Electric Co Ltd ZE064W-8DS-HU/R(B)	Receptacle	Black	Nylon, Polyamide (PA)	2	Latch Lock	Female Socket	125 °C	-40 °C	Crimp	8	Free Hanging (In-Line)	Contacts Not Included	Sealed, Waterproof
Hirose Electric Co Ltd ZE064W-8DS-HU/R(A)	Receptacle	Black	Nylon, Polyamide (PA)	2	Latch Lock	Female Socket	125 °C	-40 °C	Crimp	8	Free Hanging (In-Line)	Contacts Not Included	Sealed, Waterproof
Hirose Electric Co Ltd ZE064W-14DP-HU/R(B)	Plug	Black	Nylon, Polyamide (PA)	2	Latch Holder	Male Pin	125 °C	-40 °C	Crimp	14
Hirose Electric Co Ltd ZE064W-8DP-HU/R(A)	Plug	Black	Nylon, Polyamide (PA)	2	Locking Ramp	Male Pin	125 °C	-40 °C	Crimp	8		Contacts Not Included
