Description

General part information

36154 Series

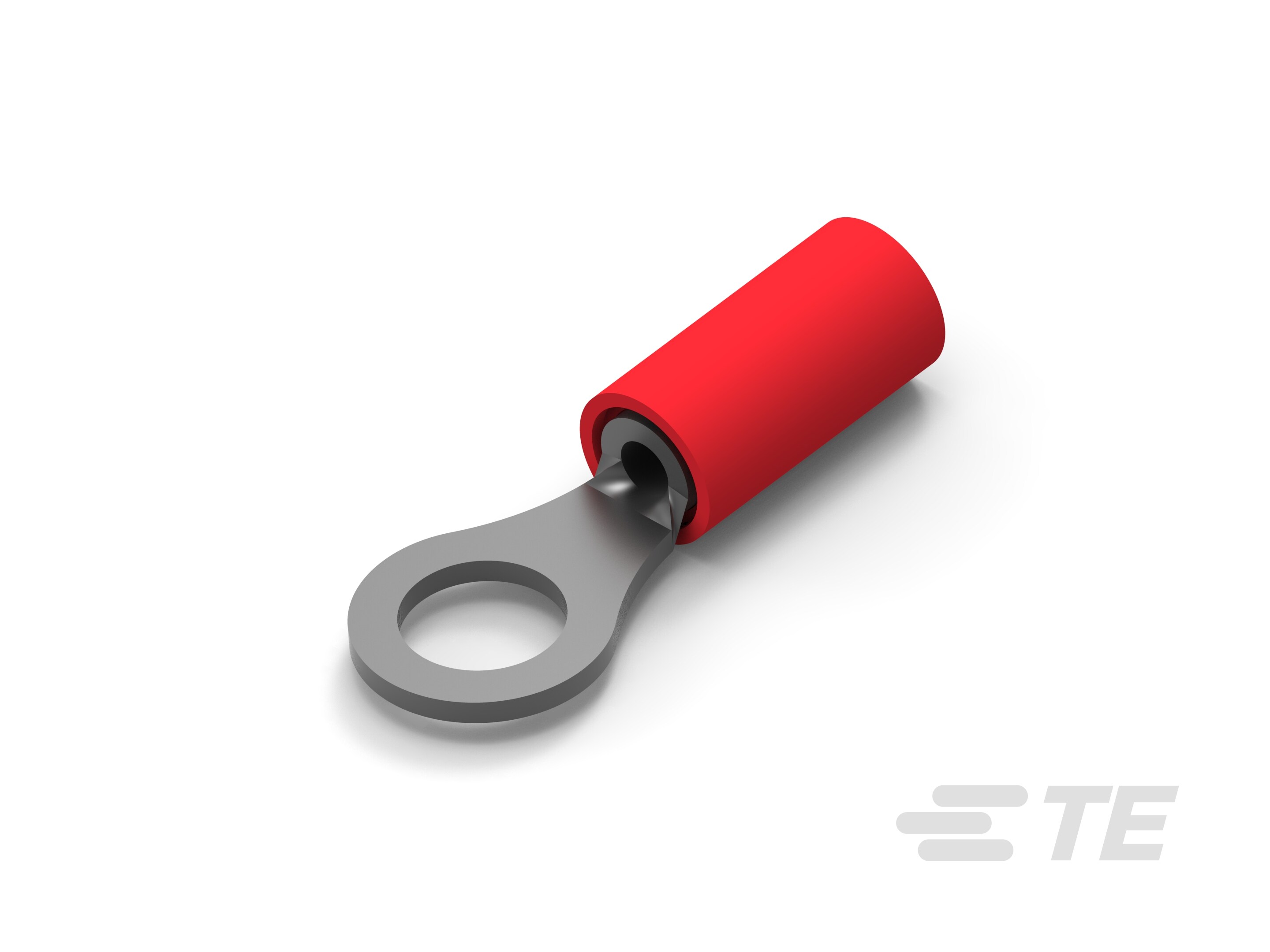

The 2-36154-2 is a Ring Tongue Terminal made of copper with tin plated finish. This straight closed barrel class 2 terminal features a red nylon insulator, crimp termination and accepts 16 to 22AWG wire.

Technical Specifications

Parameters and characteristics for this part

Specification2-36154-2
ColorRed
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter (Max)0.14 in
Insulation Diameter (Min)0.105 in
Length - Overall0.844 in
Material - InsulationPolyamide, PA, Nylon
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.312 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
