BTS612N1E3128AAUMA1

Active

Infineon Technologies

POWER LOAD SW, HIGH SIDE, 4A, 150DEG C ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

POWER LOAD SW, HIGH SIDE, 4A, 150DEG C ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BTS612N1E3128AAUMA1

Current - Output (Max) [Max]	4.4 A
Fault Protection	Open Load Detect, Short Circuit, Reverse Current, Over Voltage, Over Temperature, Current Limiting (Fixed)
Features	Auto Restart, Slew Rate Controlled
Input Type	Non-Inverting
Interface	Logic
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel

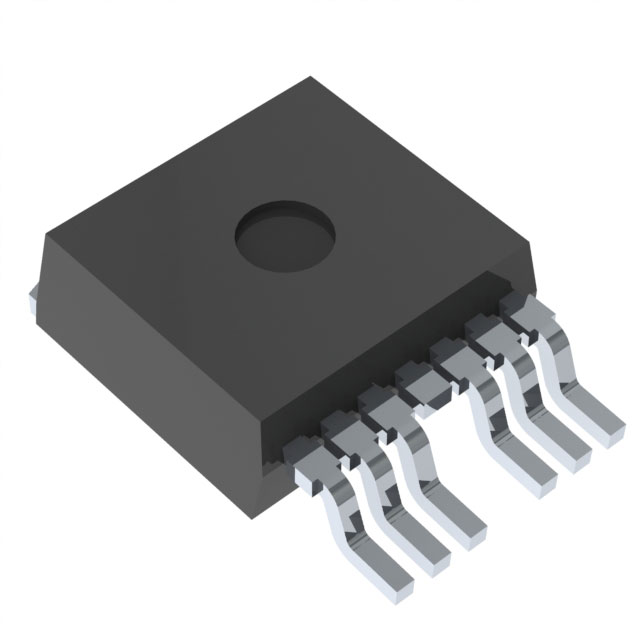

Package / Case	TO-263-7, D2PAK
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	160 mOhm
Supplier Device Package	PG-TO263-7-2
Switch Type	General Purpose
Voltage - Load [Max]	34 V
Voltage - Load [Min]	5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Output Configuration	Mounting Type	Switch Type	Current - Output (Max) [Max]	Features	Number of Outputs	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]	Rds On (Typ)	Input Type	Fault Protection	Output Type
Infineon Technologies BTS612N1E3128AAUMA1	High Side	Surface Mount	General Purpose	4.4 A	Auto Restart Slew Rate Controlled	2	PG-TO263-7-2	150 °C	-40 °C	D2PAK TO-263-7	Logic	34 V	5 V		1:1	160 mOhm	Non-Inverting	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage Reverse Current Short Circuit	N-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 N-Channel 4.4A PG-TO263-7-2
