100R6-51B

Active

Parlex USA LLC

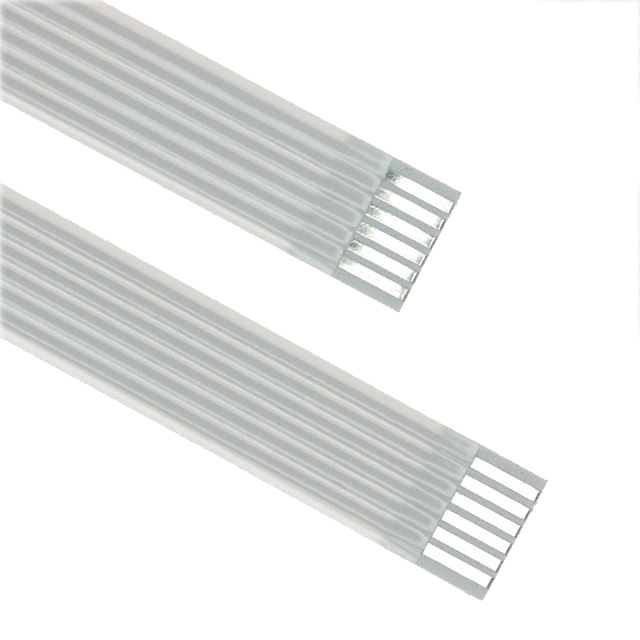

CABLE FFC/FPC 6POS 1MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 6POS 1MM 2"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	100R6-51B	100R6 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 457.2 mm
Length	2 in	2 - 18 in
Length	-	5.984 - 12 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	6	6
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 6POS 1MM 5"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Termination Style	Cable Type	Length	Length	Length [x]	Length [x]
Parlex USA LLC 100R6-127B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	5 in	127 mm
Parlex USA LLC 100R6-102B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	4 in	101.6 mm
Parlex USA LLC 100R6-152B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			5.984 in	152 mm
Parlex USA LLC 100R6-457B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	18 "	457.2 mm
Parlex USA LLC 100R6-51B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	2 in	50.8 mm
Parlex USA LLC 100R6-254B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC		254 mm	10 in
Parlex USA LLC 100R6-203B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			7.992 in	203 mm
Parlex USA LLC 100R6-305B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC		304.8 mm	12 in
