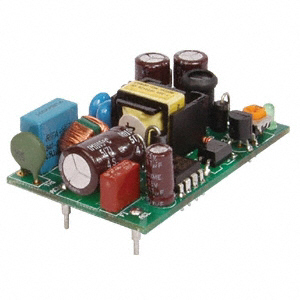

VOFM-5-24

Obsolete

CUI Inc.

AC/DC CONVERTER 24V 5W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 24V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Standard Number	Approval Agency	Type	Current - Output (Max)	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Applications	Mounting Type	Operating Temperature [Max]	Power (Watts)	Line Regulation	Load Regulation	Voltage - Output 1	Efficiency	Features	Current - Output (Max) [Max]
CUI Inc. VOFM-5-15	60601-1 60950-1	CB Scheme IEC UL	Open Frame	330 mA	1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	15 V	75 %	Universal Input
CUI Inc. VOFM-5-24	55032 Class A 60601-1 60950-1	CB Scheme EN IEC UL	Open Frame		1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	24 V	77 %	Universal Input	230 mA
CUI Inc. VOFM-5-9		CE cUL TUV UL	Open Frame		1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	9 V	74 %	Universal Input	550 mA
CUI Inc. VOFM-5-5	55032 Class A 60601-1 60950-1	CB Scheme EN IEC UL	Open Frame		1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	5 V	72 %	Universal Input	1 A
CUI Inc. VOFM-5-18	55032 Class A 60601-1 60950-1	CB Scheme EN IEC UL	Open Frame		1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	18 V	76 %	Universal Input	280 mA
CUI Inc. VOFM-5-3.3	55032 Class A 60601-1 60950-1	CB Scheme EN IEC UL	Open Frame		1	0.83 in	21 mm	2.17 "	55 mm	1.38 "	35 mm	4-DIP Module	Medical	Through Hole	70 °C	5 W	0.5 %	1 %	3.3 V	68 %	Universal Input	1.25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 230mA 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
