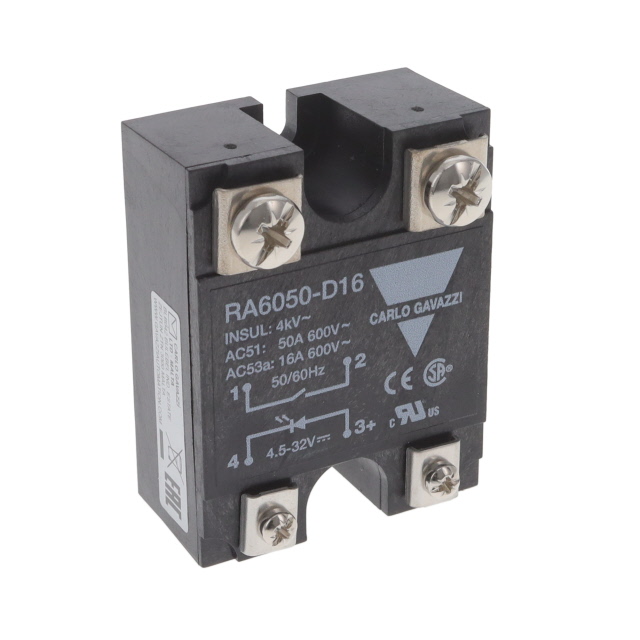

RA6050-D16
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 50A 24-690V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RA6050-D16
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 50A 24-690V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA6050-D16 |
|---|---|
| Approval Agency | CSA, UL |
| Load Current | 50 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4.5 V |
| Voltage - Load [Max] | 690 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 195.00 | |
| 10 | $ 185.25 | |||
| 50 | $ 175.50 | |||
Description
General part information
RA6050 Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
