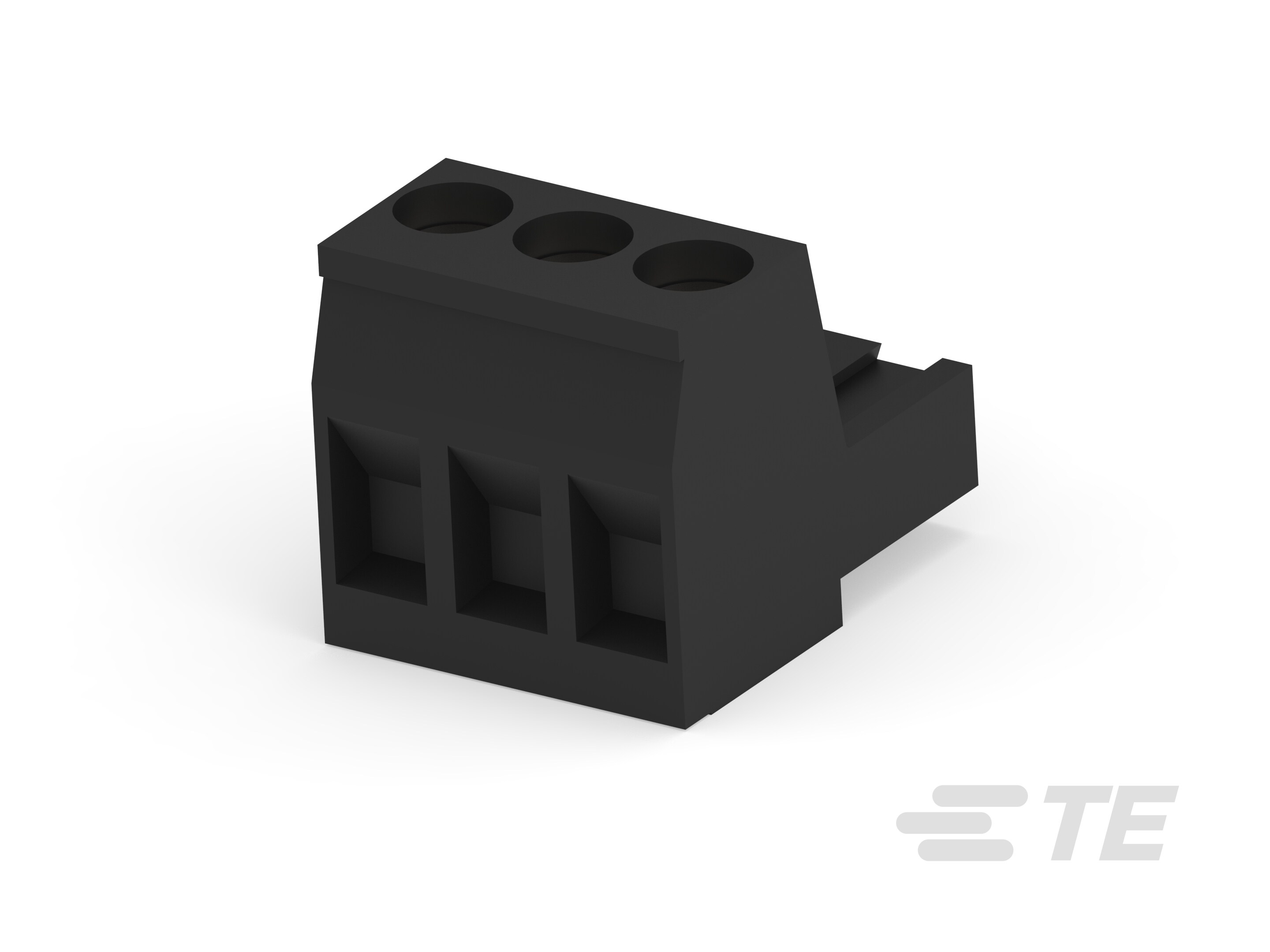

Specification	2305909-3

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - UL	15 A
Features	Retention Latches (Non-Wire Side)
Housing Material	Thermoplastic
Insulation Height	0.591 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	3
Pitch	0.197 in
Plug Wire Entry Angle	180 °
Positions Per Level	3
Termination Style	Screw
Torque - Screw	0.5 Nm
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Strip Length	7 mm

BUCHANAN WireMate TB Series Series

Part	Contact Mating Finish	Termination Style	Mounting Type	Type	Number of Positions	Pitch	Number of Levels	Positions Per Level	Voltage - UL	Color	Current - UL	Header Orientation Angle	Header Orientation	Material Flammability Rating	Contact Material	Housing Material	Insulation Height	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Features	Plug Wire Entry Angle	Wire Strip Length	Torque - Screw	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)
TE Connectivity AMP Connectors 1-2213932-2	Tin	Solder	Surface Mount	Header Male Pins Shrouded (4 Side)	12	0.138 in	1	12	300 V	Black	8 A	90 °	Right Angle	UL94 V-0	Copper Alloy	Thermoplastic	0.287 in
TE Connectivity AMP Connectors 1-2213932-0	Tin	Solder	Surface Mount	Header Male Pins Shrouded (4 Side)	10	0.138 in	1	10	300 V	Black	8 A	90 °	Right Angle
TE Connectivity AMP Connectors 1-2305908-0	Tin	Solder	Surface Mount	Header Male Pins Shrouded (4 Side)	10	0.197 in	1	10	300 V	Black	10 A	90 °	Right Angle
TE Connectivity AMP Connectors 2305908-2	Tin	Solder	Surface Mount	Header Male Pins Shrouded (4 Side)	2	0.197 in	1	2	300 V	Black	15 A	90 °	Right Angle	UL94 V-0	Copper Alloy	Thermoplastic	0.37 in
TE Connectivity AMP Connectors 1-2305909-2	Nickel	Screw	Free Hanging (In-Line)	Female Sockets Plug	12	0.197 in	1	12	300 V	Black	10 A			UL94 V-0	Copper Alloy	Thermoplastic	0.591 in	12 AWG	25.5 AWG	Retention Latches (Non-Wire Side)	180 °	7 mm	0.5 Nm
TE Connectivity AMP Connectors 1-2305909-0	Tin	Screw	Free Hanging (In-Line)	Female Sockets Plug	10	0.197 in	1	10	300 V	Black	10 A							12 AWG	25.5 AWG	Retention Latches (Non-Wire Side)	180 °			0.13 mm²	3.31 mm²
TE Connectivity AMP Connectors 1-2213936-0	Tin	Screw - Rising Cage Clamp	Free Hanging (In-Line)	Female Sockets Plug	10	0.138 in	1	10	300 V	Black								16 AWG	30 AWG		180 °
TE Connectivity AMP Connectors 1-2213936-2		Screw	Free Hanging (In-Line)	Female Sockets Plug	12	0.138 in	1	12	300 V	Gray	8 A							16 AWG	30 AWG		180 °
TE Connectivity AMP Connectors 1-2213934-0	Tin	Screw - Rising Cage Clamp	Free Hanging (In-Line)	Female Sockets Plug	10	0.197 in	1	10	300 V	Black	10 A							12 AWG	25.5 AWG	Retention Latches (Non-Wire Side)	270 °			0.13 mm²	3.31 mm²
TE Connectivity AMP Connectors 2305909-2	Nickel	Screw	Free Hanging (In-Line)	Female Sockets Plug	2	0.197 in	1	2	300 V	Black	15 A							12 AWG	25.5 AWG	Retention Latches (Non-Wire Side)	180 °
