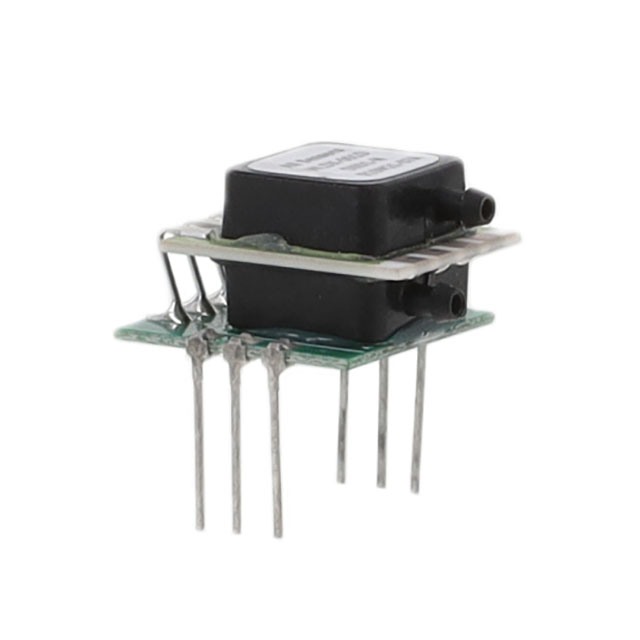

Specification	MLDX-001D-DX01-N

Accuracy	0.3 %
Features	Temperature Compensated
Maximum Pressure	7 PSI
Mounting Type	Through Hole
Operating Pressure	1 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Voltage
Output Voltage (Max)	15 mV
Output Voltage (Min)	0 V
Package Features	Same Side, Dual Ports
Package Length	0.6 in
Package Name	6-DIP
Package Width	15.24 mm
Port Diameter	0.09 in
Port Feature	Dual, Tube
Port Gender	Male
Port Style	Barbed
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply	20 VDC

MLDX Series

Part	Operating Pressure	Mounting Type	Output Voltage (Max)	Accuracy	Port Style	Operating Temperature (Min)	Operating Temperature (Max)	Pressure Type	Voltage - Supply	Output Type	Termination Style	Maximum Pressure	Port Diameter	Port Feature	Port Gender	Features	Package Length	Package Features	Package Name	Package Width
McGill Microwave Systems MLDX-100D-DX01-P	100 PSI	Through Hole	83 mV	0.5 % RH	Barbed	-40 °C	85 °C	Differential	20 VDC	Analog Voltage	PC Pin	120 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
McGill Microwave Systems MLDX-100A-DX01-N	100 PSI	Through Hole	83 mV	0.5 % RH	Barbed	-40 °C	85 °C	Absolute	20 VDC	Analog Voltage	PC Pin	120 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
McGill Microwave Systems MLDX-005D-DX01-P	5 PSI	Through Hole	50 mV	0.5 % RH	Barbed	-40 °C	85 °C	Differential	20 VDC	Analog Voltage	PC Pin	10 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
McGill Microwave Systems MLDX-001D-DX01-N	1 PSI	Through Hole	15 mV	0.3 %	Barbed	-40 °C	85 °C	Differential	20 VDC	Analog Voltage	PC Pin	7 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
McGill Microwave Systems MLDX-L10D-DX01-N	10 PSI	Through Hole	20.8 mV	0.3 %	Barbed	-40 °C	85 °C	Differential	20 VDC	Analog Voltage	PC Pin	7.23 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
McGill Microwave Systems MLDX-005D-DX01-N	5 PSI	Through Hole	50 mV	0.5 % RH	Barbed	-40 °C	85 °C	Differential	20 VDC	Analog Voltage	PC Pin	10 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm

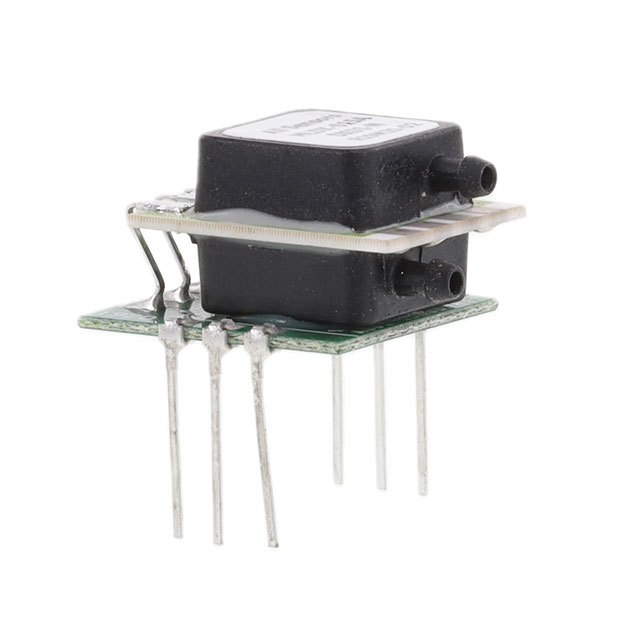

McGill Microwave Systems MLDX-015A-DX01-N	15 PSI	Through Hole	75 mV	0.5 % RH	Barbed	-40 °C	85 °C	Absolute	20 VDC	Analog Voltage	PC Pin	30 PSI	0.09 in	Dual Tube	Male	Temperature Compensated	0.6 in	Dual Ports Same Side	6-DIP	15.24 mm
