1-284414-0
ActiveTE Connectivity AMP Connectors

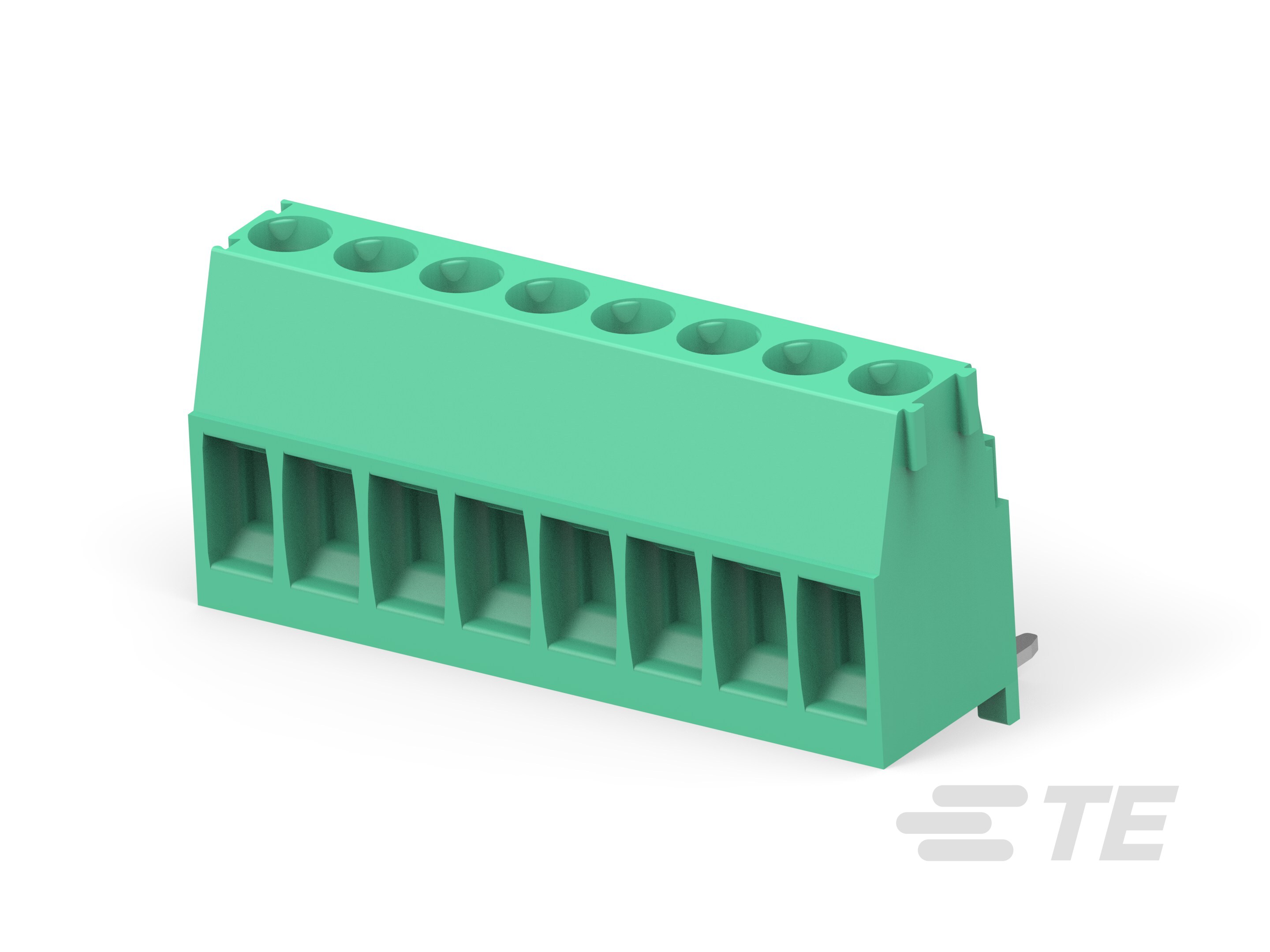

TERM BLK 10POS TOP ENT 3.5MM PCB
1-284414-0
ActiveTE Connectivity AMP Connectors
TERM BLK 10POS TOP ENT 3.5MM PCB
Description
General part information
284414 Series
10 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG, .05 – 3 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-284414-0 |
|---|---|
| Clamp Material | Brass |
| Clamp Plating | Nickel Plated |
| Color | Green |
| Contact Material | Brass |
| Current | 12 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Plating | Tin Plated |
| Positions Per Level | 10 |
| Screw Material | Brass |
| Screw Plating | Nickel Plated |
| Screw Thread | M3 |
| Torque - Screw | 0.25 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
