CXB1310-0000-000F0BN250E

Active

CreeLED, Inc.

LED COB XLAMP COOL WHT SQU 5000K

CXB1310-0000-000F0BN250E

Active

CreeLED, Inc.

LED COB XLAMP COOL WHT SQU 5000K

Description Specifications Series Pricing CAD Documents

Description

General part information

CXB1310 Series

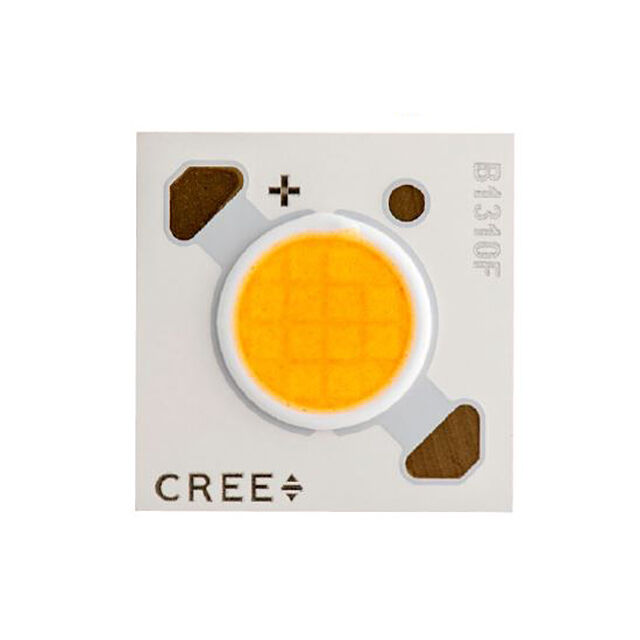

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1310 White, Cool Square

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1310-0000-000F0BN250E

CCT (K)	5000 K
CCT Description	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max	1.4 A
Current - Test	700 mA
Height	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	6 mm
Lumens/Watt	131 lm/W
Luminous Flux	1650 lm
Luminous Flux (Maximum)	1710 lm
Luminous Flux (Minimum)	1590 lm
Size / Dimension Length	13.35 mm
Size / Dimension Width	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	18 V

CXB1310 Series

...

Part	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Lens Type	Type	Lumens/Watt	Light Emitting Surface (LES) Diameter	Configuration	Temperature - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Color	CCT (K)	CCT Description	Size / Dimension Length	Size / Dimension Width	Height	Current - Max	CRI (Color Rendering Index)	Luminous Flux (Typical)
CreeLED, Inc. CXB1310-0000-000N0HN235G	1710 lm	1650 lm	1590 lm	Flat	Chip On Board (COB)	131 lm/W	6 mm	Square	85 °C	115 °	36 V	350 mA	Warm White	3500 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	700 mA	80
CreeLED, Inc. CXB1310-0000-000N0HJ422G	1200 lm	1160 lm	1120 lm	Flat	Chip On Board (COB)	100 lm/W	6 mm	Square	85 °C	115 °	33 V	350 mA	Warm White	2200 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	700 mA	80
CreeLED, Inc. CXB1310-0000-000N0BN265E	1710 lm	1650 lm	1590 lm	Flat	Chip On Board (COB)	131 lm/W	6 mm	Square	85 °C	115 °	36 V	350 mA	Cool White	6500 K	5-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	700 mA	70
CreeLED, Inc. CXB1310-0000-000F0ZJ430H				Flat	Chip On Board (COB)	95 lm/W	6 mm	Square	85 °C	115 °	18 V	700 mA	Warm White	3000 K	2-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	1.4 A	95	1191 lm
CreeLED, Inc. CXB1310-0000-000F0BN250E	1710 lm	1650 lm	1590 lm	Flat	Chip On Board (COB)	131 lm/W	6 mm	Square	85 °C	115 °	18 V	700 mA	Cool White	5000 K	5-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	1.4 A	70
CreeLED, Inc. CXB1310-0000-000F0UJ430U	1200 lm	1160 lm	1120 lm	Flat	Chip On Board (COB)	92 lm/W	6 mm	Square	85 °C	115 °	18 V	700 mA	Warm White	3000 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	1.4 A	90
CreeLED, Inc. CXB1310-0000-000F0UK431Q	1380 lm	1335 lm	1290 lm	Flat	Chip On Board (COB)	106 lm/W	6 mm	Square	85 °C	115 °	18 V	700 mA	Warm White	3100 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	1.4 A	90
CreeLED, Inc. CXB1310-0000-000N0UK235G	1290 lm	1245 lm	1200 lm	Flat	Chip On Board (COB)	99 lm/W	6 mm	Square	85 °C	115 °	36 V	350 mA	Warm White	3500 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	700 mA	90
CreeLED, Inc. CXB1310-0000-000N0UM231Q	1485 lm	1433 lm	1380 lm	Flat	Chip On Board (COB)	114 lm/W	6 mm	Square	85 °C	115 °	36 V	350 mA	Warm White	3100 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	700 mA	90
CreeLED, Inc. CXB1310-0000-000F0UJ431Q	1200 lm	1160 lm	1120 lm	Flat	Chip On Board (COB)	92 lm/W	6 mm	Square	85 °C	115 °	18 V	700 mA	Warm White	3100 K	3-Step MacAdam Ellipse	13.35 mm	13.35 mm	1.55 mm	1.4 A	90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CXB1310-0000-000F0BN250E | Datasheet
