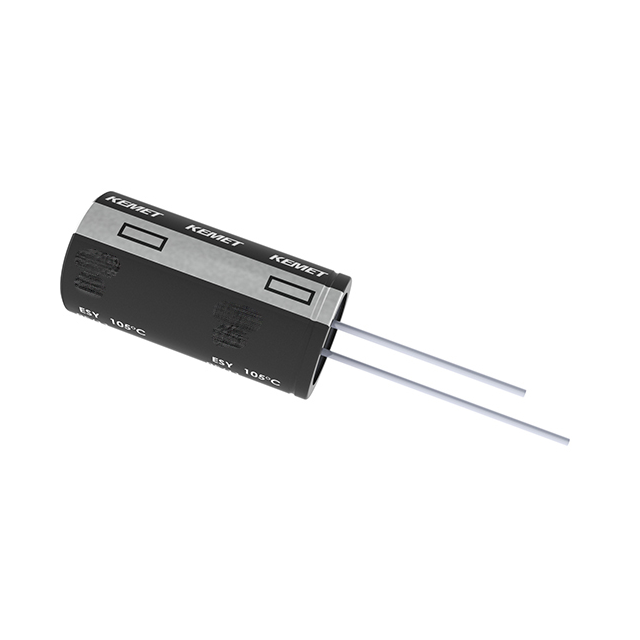

ESY106M035AB2AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 10UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	ESY106M035AB2AA

Applications	General Purpose
Capacitance	10 µF
ESR (Equivalent Series Resistance)	960 mOhm
Height - Seated (Max) [Max] [z]	0.335 in
Height - Seated (Max) [Max] [z]	8.5 mm
Impedance	960 mOhms
Lead Spacing	0.059 in
Lead Spacing	1.5 mm
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	130 mA
Ripple Current @ Low Frequency	91 mA
Size / Dimension [diameter]	4 mm
Size / Dimension [diameter]	0.157 in
Tolerance	20 %
Voltage - Rated	35 V

Part	Tolerance	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Applications	Voltage - Rated	Mounting Type
KEMET ESY106M035AB2AA	20 %	130 mA	1000 Hrs	Radial Can	10 µF	4 mm	0.157 in	91 mA	960 mOhm	-40 °C	105 ░C	0.059 in	1.5 mm	Polar	0.335 in	8.5 mm	960 mOhms	General Purpose	35 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 960mOhm @ 100kHz 1000 Hrs @ 105°C
