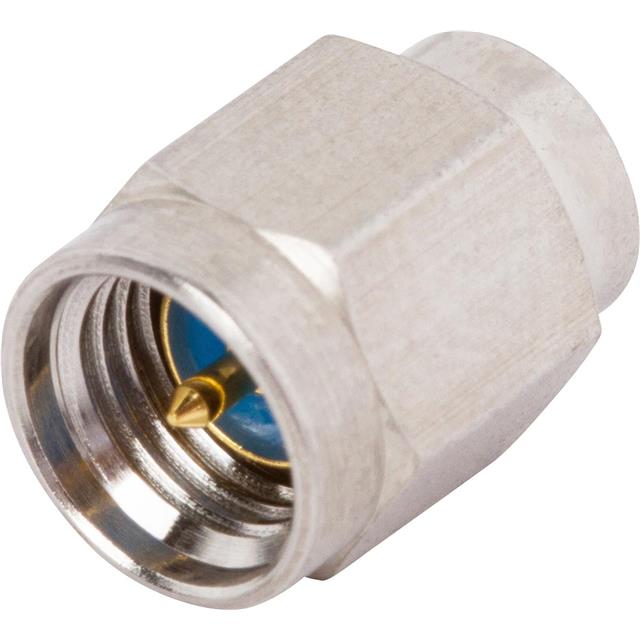

Specification	SF8018-6060

Body Finish	Gold
Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max	18 GHz
Impedance	50 Ohm
Mounting Type	Cap, Free Hanging

SF8018 Series

Part	Dielectric Material	Body Material	Body Finish	Contact Material	Connector Type	Contact Finish	Impedance	Connector Style	Mounting Type	Frequency - Max	Accessory Type	For Use With/Related Products	Color
McGill Microwave Systems SF8018-6060	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Beryllium Copper	Male Pin Plug	Gold	50 Ohm	SMA	Cap Free Hanging	18 GHz

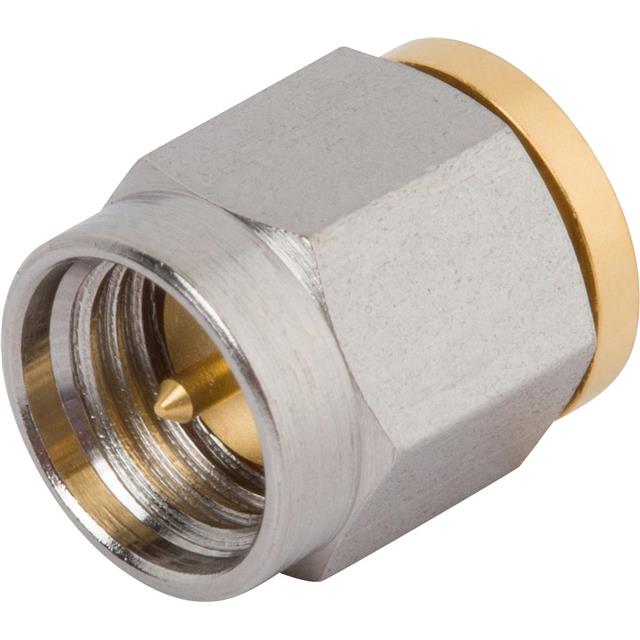

McGill Microwave Systems SF8018-6007		Stainless Steel	Gold Passivated					SMA			Cap (Cover) Shorting	SMA Jacks	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
