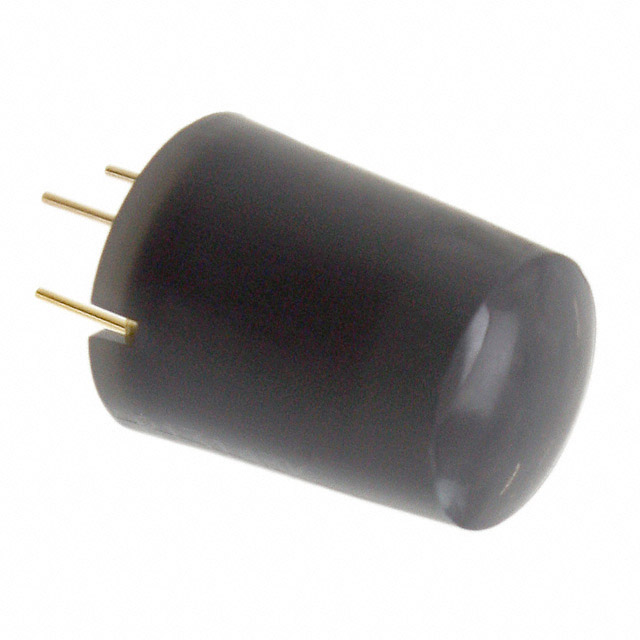

EKMB1301112K
ActivePanasonic Electric Works
SENSOR PIR STD TYPE 6UA
Deep-Dive with AI
Search across all available documentation for this part.
EKMB1301112K
ActivePanasonic Electric Works
SENSOR PIR STD TYPE 6UA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMB1301112K |
|---|---|
| Detection Pattern | Standard |
| Features | Standard Lens, Black |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Sensing Distance | 197 in |
| Sensing Distance | 5 m |
| Sensing Distance | 16.4 ft |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 4 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.99 | |
| 10 | $ 20.82 | |||
| 25 | $ 18.44 | |||
| 100 | $ 17.85 | |||
| 500 | $ 16.66 | |||
Description
General part information
EKMB1301112 Series
Sensor PIR (Passive Infrared) 197" (5m) 16.4' Standard Lens, Black
