AHER4191
ActivePanasonic Electric Works

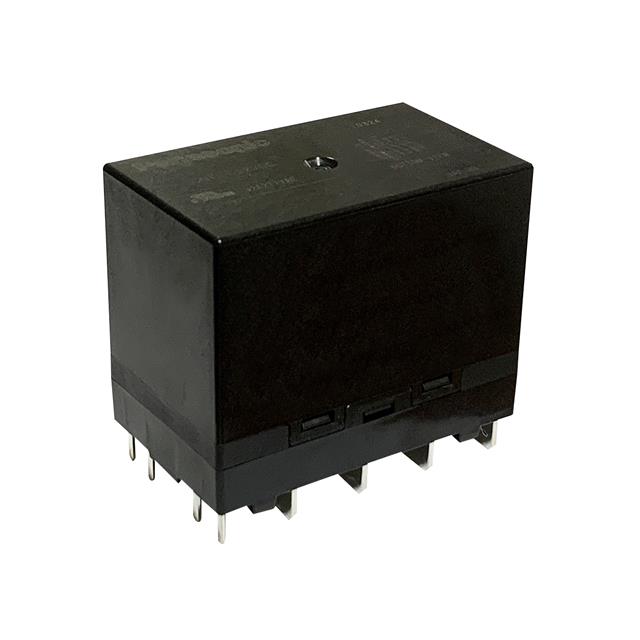

HE-R RELAY, 4FORMA+1FORMB, 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
AHER4191
ActivePanasonic Electric Works
HE-R RELAY, 4FORMA+1FORMB, 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHER4191 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 333 mA |
| Coil Resistance | 36 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | 5PST-4NO/1NC (4 Form A, 1 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Load - Max Switching [Max] | 19200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 480 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 88.89 | |
| 10 | $ 79.15 | |||
| 25 | $ 75.58 | |||
| 40 | $ 71.39 | |||
| 50 | $ 72.98 | |||
| 80 | $ 68.54 | |||
| 100 | $ 70.47 | |||
Description
General part information
AHER41 Series
General Purpose Relay 5PST-4NO/1NC (4 Form A, 1 Form B) 12VDC Coil Through Hole
