1241.1624.7

Active

SCHURTER Inc.

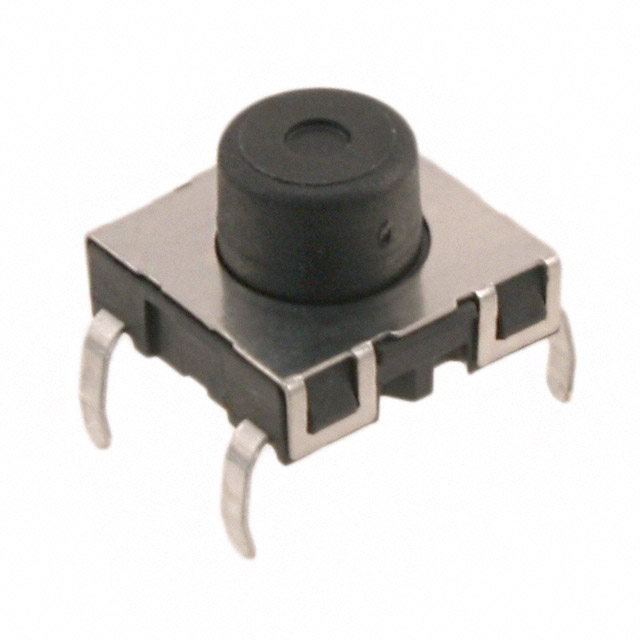

ROUND BUTTON 50MA STRAIGHT SPST 1,000,000 TIMES 1.8N 42V PLUGIN TACTILE SWITCHES ROHS

Search across all available documentation for this part.

Active

SCHURTER Inc.

ROUND BUTTON 50MA STRAIGHT SPST 1,000,000 TIMES 1.8N 42V PLUGIN TACTILE SWITCHES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.1624.7	1241.1624 Series

Actuator Height off PCB, Vertical	12.85 mm	12.85 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard, Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VDC, 0.05 A	0.05 - 42 VDC
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP40	IP40
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	180 gf	180 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	11.4 mm	11.4 mm
Outline [y]	11.4 mm	11.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.35 mm	0.35 mm
Termination Style	PC Pin	PC Pin

ROUND BUTTON 50MA STRAIGHT SPST 1,000,000 TIMES 1.8N 42V PLUGIN TACTILE SWITCHES ROHS

Part	Actuator Type	Ingress Protection	Actuator Orientation	Contact Rating @ Voltage	Mechanical Life	Features	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Mounting Type	Switch Function	Circuit	Operating Force	Switch Travel	Outline [y]	Outline [x]	Termination Style	Actuator Material
SCHURTER Inc. 1241.1624.7	Standard	IP40	Top Actuated	0.05 A, 42 VDC	1000000 Cycles	Tactile Feedback	Non-Illuminated	85 °C	-40 °C	12.85 mm	Through Hole	Off-Mom	SPST-NO	180 gf	0.35 mm	11.4 mm	11.4 mm	PC Pin	Polyphenylene Sulfide (PPS)
SCHURTER Inc. 1241.1624.61	Round Button	IP40	Top Actuated	0.05 A, 42 VDC	1000000 Cycles	Tactile Feedback	Non-Illuminated	85 °C	-40 °C		Through Hole	Off-Mom	SPST-NO	180 gf	0.35 mm	11.4 mm	11.4 mm	PC Pin	Polyphenylene Sulfide (PPS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.02
LCSC	Piece	1	$ 1.97

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
