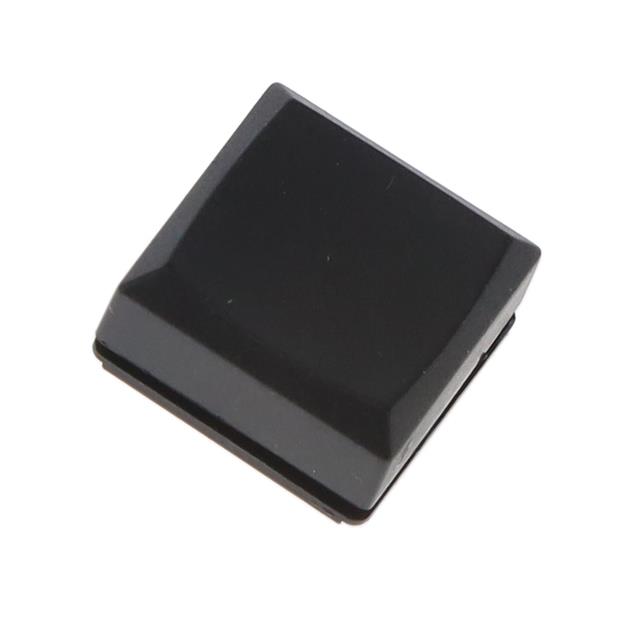

1241.1055.7000
ActiveSCHURTER Inc.
SWITCH TACTILE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.1055.7000
ActiveSCHURTER Inc.
SWITCH TACTILE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1055.7000 | 1241.1055 Series |
|---|---|---|
| Actuator Height off PCB, Vertical | - | 5.85 mm |
| Actuator Material | - | Thermoplastic |
| Actuator Orientation | - | Top Actuated |
| Actuator Type | - | Round Button |
| Circuit | - | SPST-NO |
| Contact Rating @ Voltage | - | 0.125 - 48 A |
| Illumination | - | Non-Illuminated |
| Ingress Protection | - | IP40 |
| Mechanical Life | - | 1000000 Cycles |
| Mounting Type | - | Through Hole |
| null | - | |
| Operating Force | - | 235 gf |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 85 °C |
| Outline | - | 12.65 mm |
| Outline | - | 12.65 mm |
| Switch Function | - | Off-Mom |
| Switch Travel | - | 0.45 mm |
| Termination Style | - | PC Pin |
1241.1055 Series
SWITCH TACT SPST-NO 0.125A 48V
| Part | Operating Force | Mechanical Life | Termination Style | Switch Function | Outline [y] | Outline [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Illumination | Actuator Type | Circuit | Ingress Protection | Actuator Material | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Switch Travel | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1055.8000 | 235 gf | 1000000 Cycles | PC Pin | Off-Mom | 12.65 mm | 12.65 mm | -25 °C | 85 °C | Through Hole | Non-Illuminated | Round Button | SPST-NO | IP40 | Thermoplastic | 5.85 mm | Top Actuated | 0.45 mm | 0.125 A, 48 VDC |
SCHURTER Inc. 1241.1055.7058 | 235 gf | 1000000 Cycles | PC Pin | Off-Mom | 12.65 mm | 12.65 mm | -25 °C | 85 °C | Through Hole | Non-Illuminated | Round Button | SPST-NO | IP40 | Thermoplastic | 5.85 mm | Top Actuated | 0.45 mm | 0.125 A, 48 VDC |
SCHURTER Inc. 1241.1055.7000 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.50 | |
| 50 | $ 3.35 | |||
| 100 | $ 2.63 | |||
| 500 | $ 2.62 | |||
Description
General part information
1241.1055 Series
Tactile Switch
Documents
Technical documentation and resources
