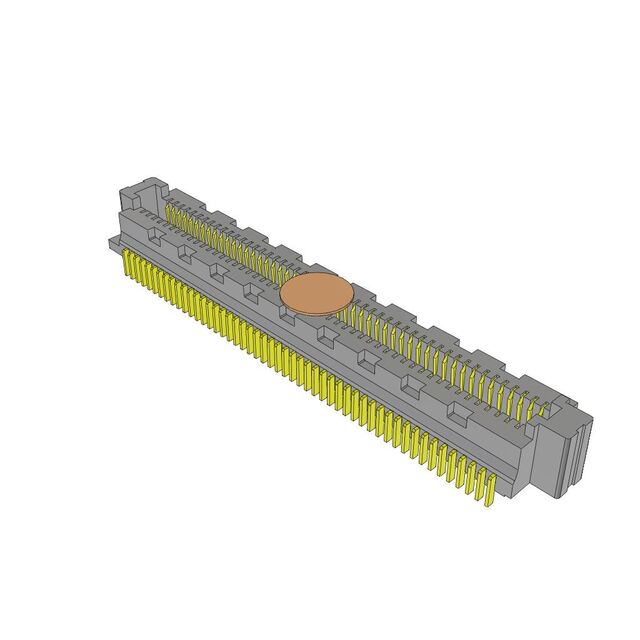

SS5-50-3.50-L-D-K-TR

Active

Samtec Inc.

0.50 MM RAZOR BEAM LP SLIM SOCK

Search across all available documentation for this part.

Active

Samtec Inc.

0.50 MM RAZOR BEAM LP SLIM SOCK

Technical Specifications

Parameters and characteristics for this part

Specification	SS5-50-3.50-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	3.35 mm
Height Above Board	0.132 in
Mated Stacking Heights	6 mm, 5.5 mm, 4.5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions
Samtec Inc. SS5-50-3.50-L-D-K-TR	0.5 mm	0.02 in	Surface Mount	Gold	3.35 mm	0.132 in	4.5 mm 5.5 mm 6 mm	Pick and Place	2	10 Áin	0.25 Ám	Outer Shroud Contacts Socket	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
