APV-12E-24

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

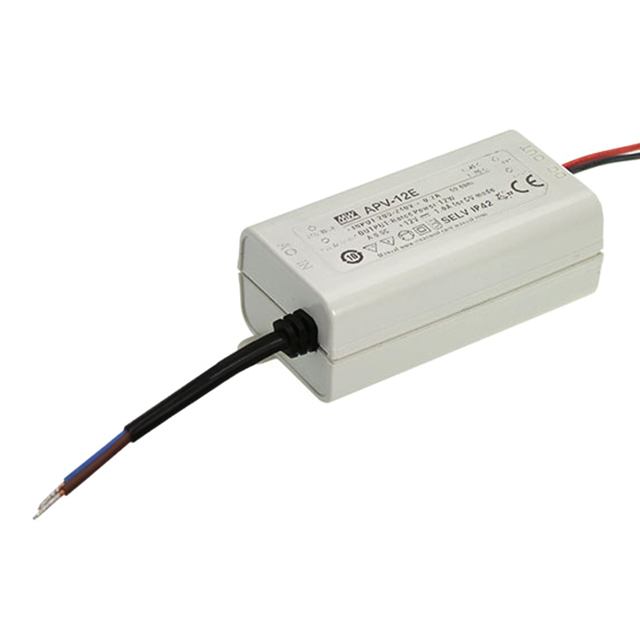

APV-12E-24

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APV-12 Series

500mA 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APV-12E-24	APV-12 Series

Approval Agency	ENEC, CE	ENEC, CE, cURus, CB, CCC
Current - Output (Max) [Max]	500 mA	1 - 800 mA
Efficiency	83 %	76 - 84 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	12 W	10 - 12 W
Ratings	IP42	IP42
Size / Dimension [x]	3.03 in	3.03 in
Size / Dimension [x]	77 mm	77 mm
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [z]	29 mm	29 mm
Size / Dimension [z]	1.14 "	1.14 "
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Voltage	Constant Voltage
Voltage - Input (Max) [Max]	264 VAC	264 VAC
Voltage - Input (Min) [Min]	180 VAC	90 - 180 VAC
Voltage - Isolation	3750 V	3750 V
Voltage - Output	24 V	5 - 24 V

APV-12 Series

LED DRIVER CV AC/DC 24V 500MA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Voltage - Isolation	Voltage - Input (Min) [Min]	Termination Style	Features	Topology	Ratings	Efficiency	Voltage - Input (Max) [Max]	Type	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Voltage - Output
MEAN WELL USA Inc. APV-12E-24	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	180 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42	83 %	264 VAC	Constant Voltage	12 W	Chassis Mount	500 mA	CE, ENEC	24 V
MEAN WELL USA Inc. APV-12-5	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	90 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42	76 %	264 VAC	Constant Voltage	10 W	Chassis Mount	2 A	CB, CCC, CE, cURus, ENEC	5 V
MEAN WELL USA Inc. APV-12-12	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	90 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42		264 VAC	Constant Voltage	12 W	Chassis Mount	1 A	CB, CCC, CE, cURus, ENEC	12 V
MEAN WELL USA Inc. APV-12-24	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	90 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42	84 %	264 VAC	Constant Voltage	12 W	Chassis Mount	500 mA	CB, CCC, CE, cURus, ENEC	24 V
MEAN WELL USA Inc. APV-12E-12	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	180 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42	81 %	264 VAC	Constant Voltage	12 W	Chassis Mount	1 A	CE, ENEC	12 V
MEAN WELL USA Inc. APV-12-15	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	1	3750 V	90 VAC	Wire Leads	OCP, OVP, SCP	AC DC Converter	IP42		264 VAC	Constant Voltage	12 W	Chassis Mount	800 mA	CB, CCC, CE, cURus, ENEC	15 VDC
