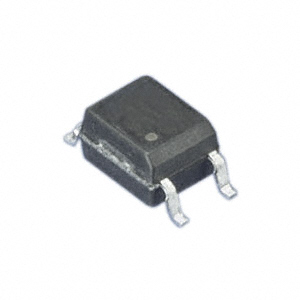

PC355NJ0000F

Active

SHARP/Socle Technology

OPTOISO 3.75KV DARL 4-MINI-FLAT

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISO 3.75KV DARL 4-MINI-FLAT

Technical Specifications

Parameters and characteristics for this part

Specification	PC355NJ0000F

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	80 mA
Current Transfer Ratio (Min) [Min]	600 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Darlington
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	60 µs
Rise / Fall Time (Typ) [custom]	53 µs
Supplier Device Package	4-Mini-Flat
Vce Saturation (Max) [Max]	1 V
Voltage - Isolation	3750 Vrms
Voltage - Output (Max) [Max]	35 V

OPTOISO 3.75KV DARL 4-MINI-FLAT

Part	Voltage - Isolation	Package / Case	Current - Output / Channel	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Vce Saturation (Max) [Max]	Number of Channels	Output Type	Current - DC Forward (If) (Max)	Mounting Type	Voltage - Output (Max) [Max]	Supplier Device Package
SHARP/Socle Technology PC355NJ0000F	3750 Vrms	4-SMD, Gull Wing	80 mA	DC	60 µs	53 µs	100 °C	-30 ░C	600 %	1 V	1	Darlington	50 mA	Surface Mount	35 V	4-Mini-Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Darlington Output 3750Vrms 1 Channel 4-Mini-Flat

Technical documentation and resources

No documents available
