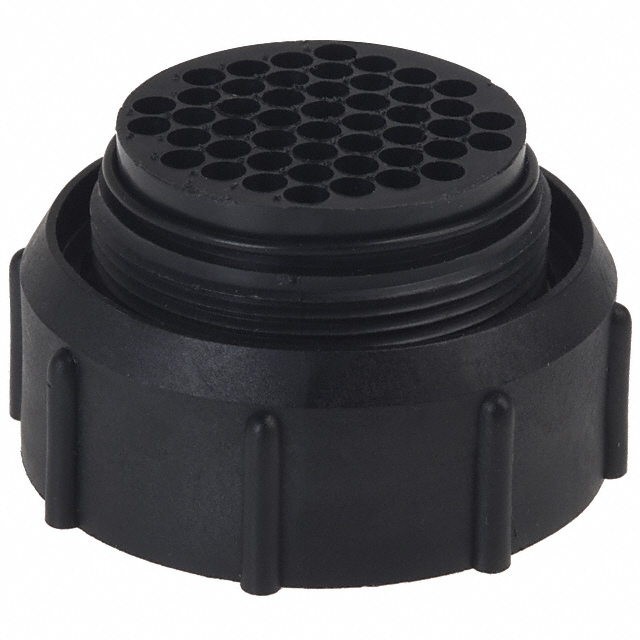

UTP62448P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 48POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTP62448P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 48POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTP62448P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	48
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Shell Size - Insert [Max]	48
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Male Pins

UTP62 Series

Part	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Housing Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Type	Contact Type	Contact Size	Contact Shape	Orientation	Material Flammability Rating	Shielding	Connector Type	Number of Positions	Note	Shell Size - Insert	Number of Positions [custom]	Contact Size	Contact Size	Contact Size
Souriau-Sunbank by Eaton UTP62448S	Coupling Nut	24	48	Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Female Sockets	Crimp	16	Circular	N	UL94 V-0	Unshielded	Plug Housing	48	Contacts Not Included
Souriau-Sunbank by Eaton UTP6247P	Coupling Nut			Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Male Pins	Crimp		Circular	N	UL94 V-0	Unshielded	Plug Housing	8 9	Contacts Not Included	24-7	PE	8	16
Souriau-Sunbank by Eaton UTP62028P	Coupling Nut	20	28	Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Male Pins	Crimp	16	Circular	N	UL94 V-0	Unshielded	Plug Housing	28	Contacts Not Included
Souriau-Sunbank by Eaton UTP62448P	Coupling Nut	24	48	Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Male Pins	Crimp	16	Circular	N	UL94 V-0	Unshielded	Plug Housing	48	Contacts Not Included
Souriau-Sunbank by Eaton UTP62235S	Coupling Nut	22	35	Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Female Sockets	Crimp	16	Circular	N	UL94 V-0	Unshielded	Plug Housing	35	Contacts Not Included
Souriau-Sunbank by Eaton UTP624-7SR	Coupling Nut			Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Female Sockets	Crimp		Circular	N	UL94 V-0	Unshielded	Plug Housing	9	Contacts Not Included	24-7		8	16
Souriau-Sunbank by Eaton UTP62411S	Coupling Nut			Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Female Sockets	Crimp		Circular	N	UL94 V-0	Unshielded	Plug Housing	11	Contacts Not Included	24-11				16 (7) 8 (4)
Souriau-Sunbank by Eaton UTP62028S	Coupling Nut	20	28	Black	Free Hanging (In-Line)	125 °C	-25 °C	Bayonet Lock	For Female Sockets	Crimp	16	Circular	N	UL94 V-0	Unshielded	Plug Housing	28	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.49
		10	$ 22.32
		25	$ 21.35
		50	$ 20.66
		100	$ 19.98
		250	$ 18.87
		500	$ 18.32

Description

General part information

UTP62 Series

48 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

No documents available
