IF13-SE-H05-3100-WF-200

Active

TE Connectivity Raychem Cable Protection

CRD 18AWG IEC320-C13 - CBL 6.56'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CRD 18AWG IEC320-C13 - CBL 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	IF13-SE-H05-3100-WF-200

1st Connector	IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	White
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Features	Filter
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VAC
Wire Gauge	18 AWG

Part	Cord Type	Voltage Rating	Current Rating (Amps)	Style	Features	Number of Conductors	Wire Gauge	1st Connector	Shielding	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Approved Countries	Approval Agency Marking	Color
TE Connectivity Raychem Cable Protection IF13-SE-H05-3100-WF-200	H05VV-F	250 VAC	10 A	Female Sockets (Slots) to Leads	Filter	3	18 AWG	IEC 320-C13	Shielded	2 m	6.56 ft	70 °C	-25 °C	Cable	Canada United States	CSA UL	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

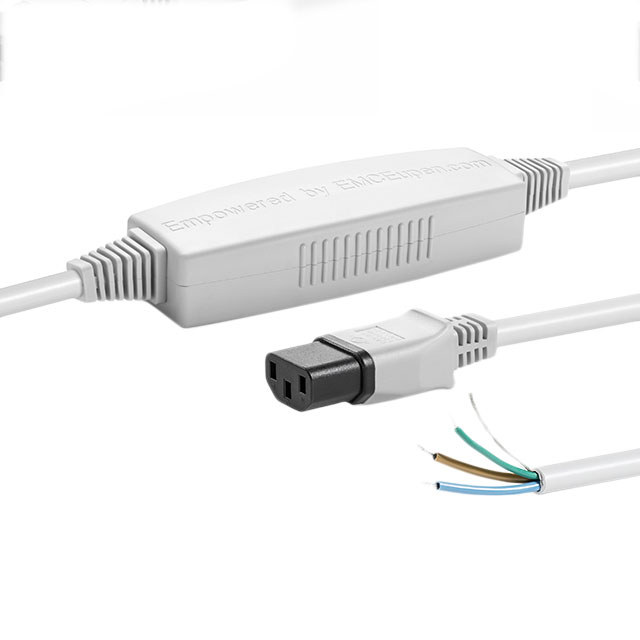

6.56' (2.00m) Power Cord White IEC 320-C13 To Cable H05VV-F
