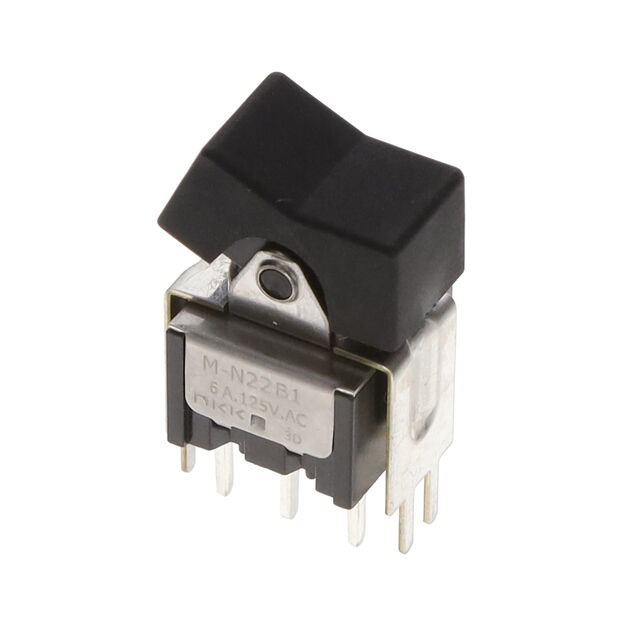

MN22TXW13-DA

Active

NKK Switches

SWITCH ROCKER MINIATURE PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

MN22TXW13-DA

Active

NKK Switches

SWITCH ROCKER MINIATURE PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MN22TXW13-DA

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MN22TX Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Current Rating (Amps)	Circuit	Termination Style	Approval Agency	Actuator Type	Mounting Type	Electrical Life	Voltage Rating - DC	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap
NKK Switches MN22TXG15/108	-30 ░C	85 °C	On-On	0.4 VA	DPDT	PC Pin	UL	Actuator Arm Cap Required	Through Hole	50000 Cycles	28 V	Varies by Cap	28 V
NKK Switches MN22TXW41-FA	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Concave (Standard V)	Right Angle Through Hole Vertical	25000 Steps	30 V	No Marking	125 V	Black
NKK Switches MN22TXW30-EA	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Paddle	Through Hole Right Angle	25000 Steps	30 V	No Marking	125 V	Black
NKK Switches MN22TXG13-EA	-30 ░C	85 °C	On-On	0.4 VA	DPDT	PC Pin	UL	Paddle	Through Hole	50000 Cycles	28 V	No Marking	28 V	Black
NKK Switches MN22TXW41-DA	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Concave (Standard V)	Right Angle Through Hole Vertical	25000 Steps	30 V	No Marking	125 V	Black
NKK Switches MN22TXW13-DA	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Concave (Standard V)	Through Hole	25000 Steps	30 V	No Marking	125 V	Black
NKK Switches MN22TXW41	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Actuator Arm Cap Required	Right Angle Through Hole Vertical	25000 Steps	30 V	Varies by Cap	125 V
NKK Switches MN22TXW30-DA	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Concave (Standard V)	Through Hole Right Angle	25000 Steps	30 V	No Marking	125 V	Black
NKK Switches MN22TXW41-DC	-30 ░C	85 °C	On-On	4 A 6 A	DPDT	PC Pin	UL	Concave (Standard V)	Right Angle Through Hole Vertical	25000 Steps	30 V	No Marking	125 V	Red
NKK Switches MN22TXG13-GA	-30 ░C	85 °C	On-On	0.4 VA	DPDT	PC Pin	UL	Actuator Arm Cap Required	Through Hole	50000 Cycles	28 V	No Marking	28 V	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.52
		10	$ 9.11
		100	$ 7.66
		1000	$ 5.67

Description

General part information

MN22TX Series

Rocker Switch DPDT 6A (AC), 4A (DC) 125 V Through Hole
