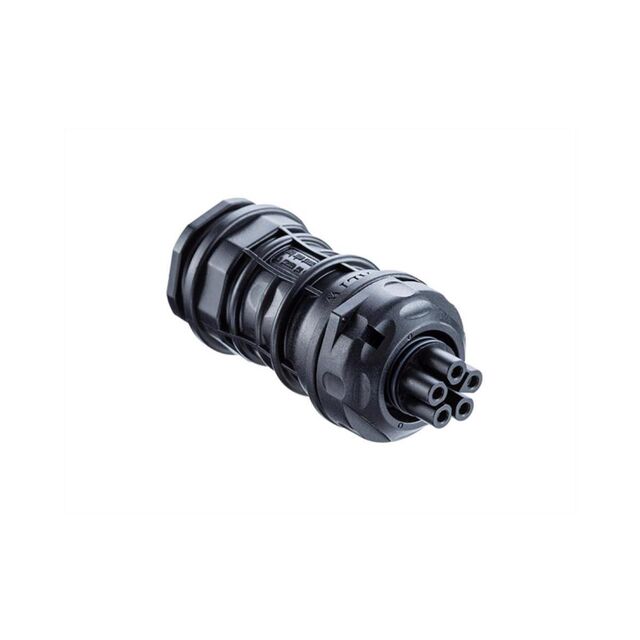

Specification	PWH-05BFFC-LL8002

Cable Opening (Max)	0.63 in
Cable Opening (Min)	0.512 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Tin
Contact Material	Copper
Current Rating	25 A
Fastening Type	Bayonet Lock
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Polyphenylene Ether, PPE
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyphenylene Ether (PPE)
Shielding	Unshielded
Termination	Crimp
Voltage Rating (AC)	660 VAC
Voltage Rating (DC)	1000 VDC

PWH-05BFFC Series

Part	Insert Material	Material Flammability Rating	Connector Type	Primary Material	Orientation	Contact Finish - Mating	Mounting Type	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Color	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Contact Material	Fastening Type	Cable Opening (Min)	Cable Opening (Max)	Number of Positions	Voltage Rating (AC)	Voltage Rating (DC)	Termination	Current Rating
McGill Microwave Systems PWH-05BFFC-LL8002	Polyphenylene Ether PPE	UL94 V-0	Female Sockets Plug	Plastic	Keyed	Tin	Free Hanging (In-Line)	Unshielded	-40 °C	105 °C	Black	Polyphenylene Ether (PPE)	IP68	Dust Tight Waterproof	Copper	Bayonet Lock	0.512 in	0.63 in	5	660 VAC	1000 VDC	Crimp	25 A
