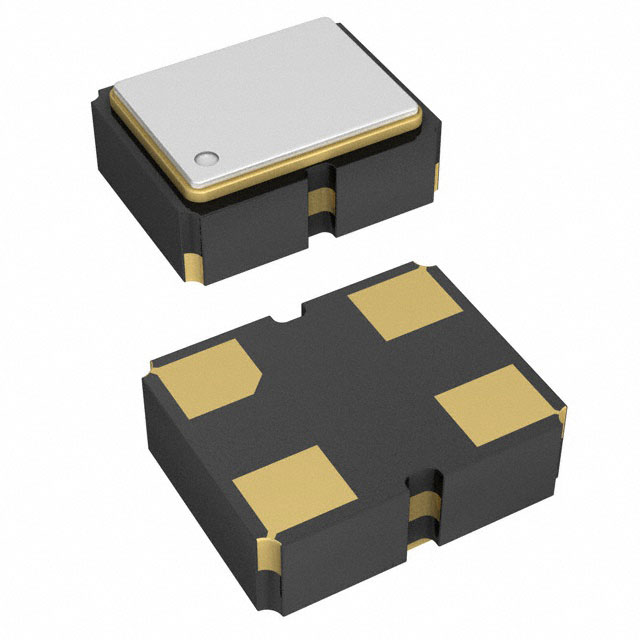

KJ3270004Z
ActiveDiodes Inc
XTAL OSC XO 32.7680 KHZ LVCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KJ3270004Z
ActiveDiodes Inc
XTAL OSC XO 32.7680 KHZ LVCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KJ3270004Z |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 0.5 µA |
| Current - Supply (Max) [Max] | 15 µA |
| Frequency | 32.768 kHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.95 | |
| Digi-Reel® | 1 | $ 1.95 | ||
| Tape & Reel (TR) | 3000 | $ 1.17 | ||
Description
General part information
KJ3270004 Series
32.768 kHz XO (Standard) LVCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
